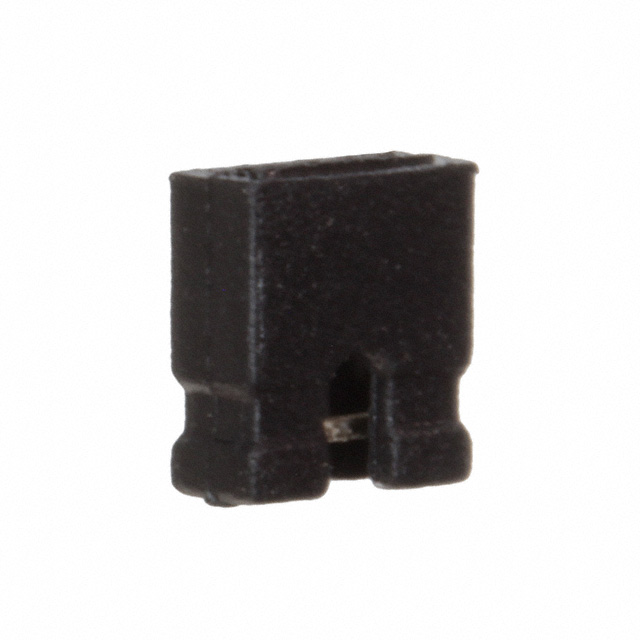

MS2A-G

Active

Adam Tech

MINI SHUNT 2.0MM 2P GOLD

Search across all available documentation for this part.

Active

Adam Tech

MINI SHUNT 2.0MM 2P GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	MS2A-G

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Gender	Female Sockets
Height [z]	0.177 in
Height [z]	4.5 mm
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Type	Open Top
Voltage Rating	250 VAC

Part	Pitch [x]	Pitch [x]	Gender	Height [z]	Height [z]	Material Flammability Rating	Housing Material	Voltage Rating	Color	Contact Finish	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish Thickness	Type
Adam Tech MS2A-G	0.079 in	2 mm	Female Sockets	0.177 in	4.5 mm	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	250 VAC	Black	Gold	1 x 2	2	Flash	Open Top
Adam Tech MS2A-T	0.079 in	2 mm	Female Sockets	0.177 in	4.5 mm	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	250 VAC	Black	Tin	1 x 2	2		Open Top
