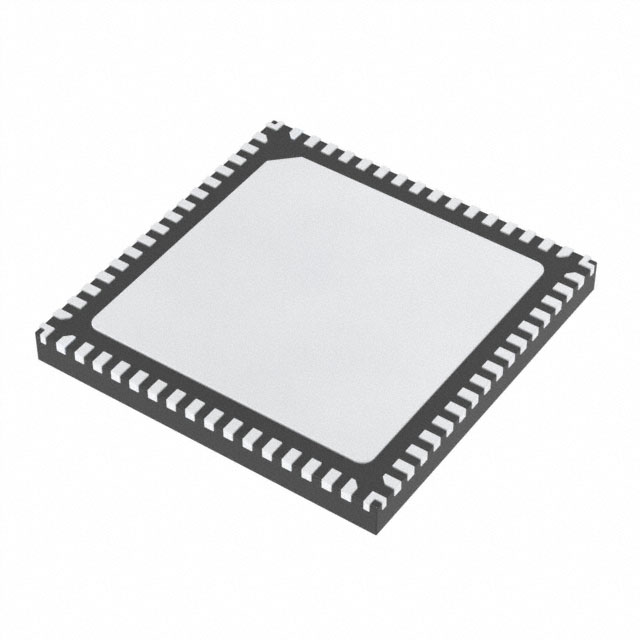

TB67S128FTG(O,EL)
ActiveToshiba Semiconductor and Storage
IC MTR DRVR BIPOLAR 0-5.5V 64QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TB67S128FTG(O,EL)
ActiveToshiba Semiconductor and Storage
IC MTR DRVR BIPOLAR 0-5.5V 64QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB67S128FTG(O,EL) |
|---|---|
| Applications | General Purpose |
| Current - Output | 5 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Parallel |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (4) |
| Package / Case | 64-VFQFN Exposed Pad |
| Step Resolution | 0.0625, 0.03125, 0.125 |
| Supplier Device Package | 64-VQFN (9x9) |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 44 V |
| Voltage - Load [Min] | 6.5 V |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.18 | |
| 10 | $ 6.19 | |||
| 25 | $ 5.41 | |||
| 100 | $ 4.52 | |||
| 250 | $ 4.09 | |||
| 500 | $ 4.00 | |||
| Digi-Reel® | 1 | $ 9.18 | ||
| 10 | $ 6.19 | |||
| 25 | $ 5.41 | |||
| 100 | $ 4.52 | |||
| 250 | $ 4.09 | |||
| 500 | $ 4.00 | |||
| Tape & Reel (TR) | 4000 | $ 4.00 | ||
Description
General part information
TB67S128 Series
Bipolar Motor Driver Power MOSFET Parallel 64-VQFN (9x9)
