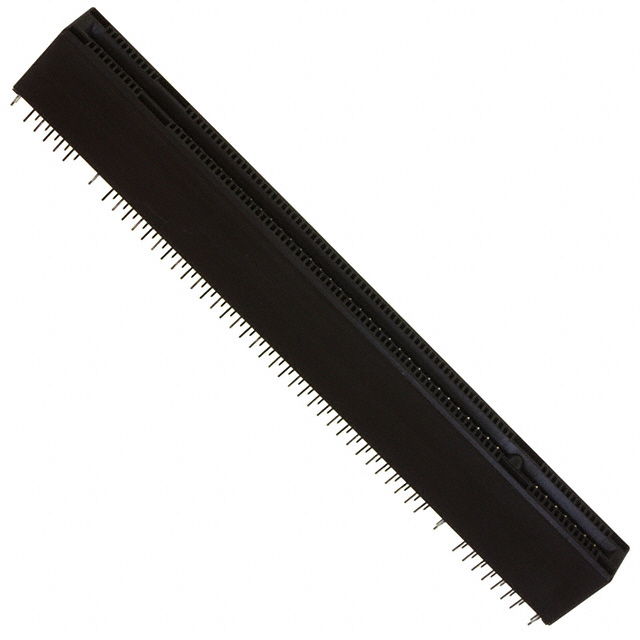

TPWE090DKHN-TAGP

Obsolete

Sullins Connector Solutions

CONN AGP FMALE 180POS 0.039 GOLD

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN AGP FMALE 180POS 0.039 GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	TPWE090DKHN-TAGP

Color	Brown
Contact Finish	Gold
Contact Finish Thickness	0.127 µm
Contact Finish Thickness	5 µin
Contact Material	Phosphor Bronze
Contact Type	Cantilever
Features	Board Guide
Gender	Female
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	180
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

Part	Number of Rows	Read Out	Material - Insulation	Color	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish	Contact Material	Gender	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Positions	Features	Pitch [x]	Pitch [x]
Sullins Connector Solutions TPWE090DKHN-TAGP	2	Dual	Polybutylene Terephthalate (PBT)	Brown	85 °C	-55 °C	Through Hole	Gold	Phosphor Bronze	Female	Solder	0.127 µm	5 µin	Cantilever	180	Board Guide	0.039 in	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

180 Position Female Connector AGP Pro Universal Gold 0.039" (1.00mm) Brown
