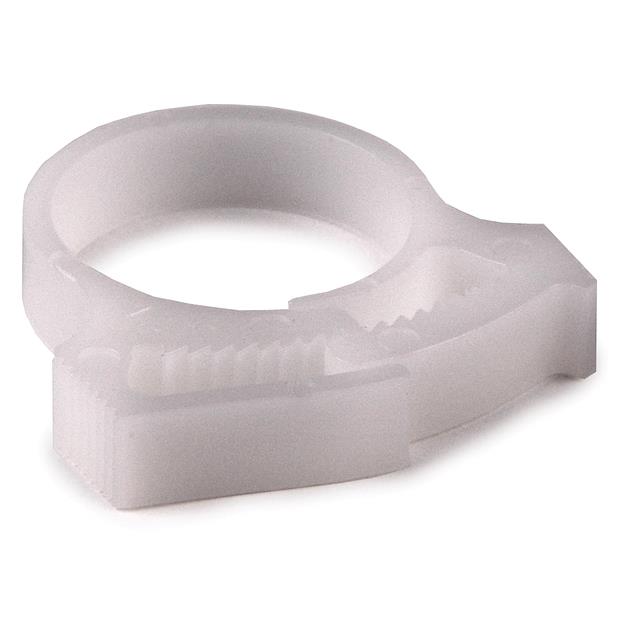

SNP1610C2

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	SNP1610C2

Color	White
Length [Max]	1.21 in
Length [Max]	30.73 mm
Length [Min]	20 mm
Length [Min]	0.787 in
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	1.7 mm
Material Thickness	0.067 in
Opening Size [Max] [custom]	21.54 mm
Opening Size [Max] [custom]	0.848 in
Opening Size [Min] [custom]	19.28 mm
Opening Size [Min] [custom]	0.759 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	5.89 mm
Width	0.232 in

Part	Type Attributes	Material Flammability Rating	Material	Material Thickness	Material Thickness	Length [Min]	Length [Max]	Length [Min]	Length [Max]	Type	Color	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Width	Width
HELLERMANNTYTON SNP1610C2	Push-Fit	UL94 HB	Polyacetal (POM)	1.7 mm	0.067 in	20 mm	1.21 in	0.787 in	30.73 mm	Clamp Hose	White	19.28 mm	21.54 mm	0.759 in	0.848 in	5.89 mm	0.232 in
