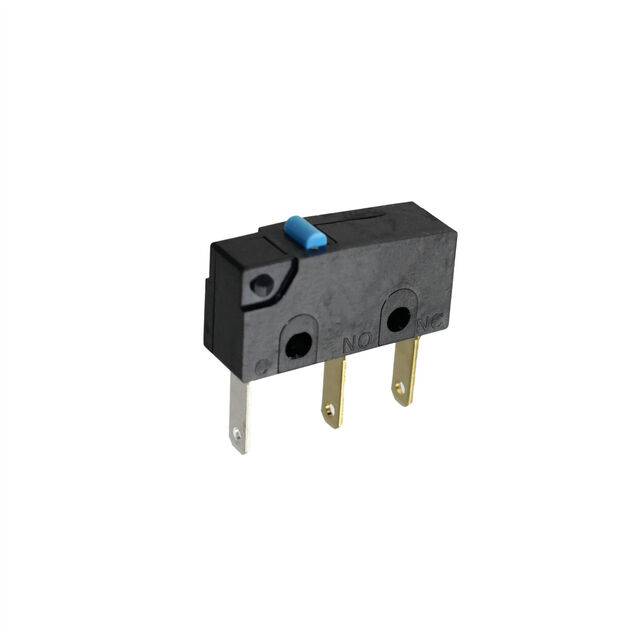

SSG-01T

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Overtravel	Overtravel	Voltage Rating - AC	Voltage Rating - DC	Release Force	Mechanical Life	Electrical Life	Operating Position	Operating Position	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Differential Travel	Differential Travel	Circuit	Switch Function	Ingress Protection	Termination Style	Operating Force	Actuator Type	Pretravel	Pretravel
Omron Electronics Inc-EMC Div SSG-01L3P	0.039 in	1 mm	125 V	30 V	6 gf	10000000 Cycles	200000 Cycles	0.567 in	14.4 mm	Chassis Mount	125 °C	-25 °C	100 mA	0.8 mm	0.031 "	SPDT	On-Mom	IP40	Solder Lug	61 gf	Lever Simulated Roller
Omron Electronics Inc-EMC Div SSG-01L1P-5	0.04 in	1 mm	125 V	30 V	2.039 gf	10000000 Cycles	200000 Cycles	0.48 in	12.2 mm	Through Hole	125 °C	-25 °C	100 mA	0.8 mm	0.031 "	SPDT	On-Mom	IP40	PC Pin	20 gf	Lever Straight
Omron Electronics Inc-EMC Div SSG-01T	0.015 "	0.4 mm	125 V	30 V	25 gf	10000000 Cycles	200000 Cycles	0.33 in	8.4 mm	Chassis Mount	125 °C	-25 °C	100 mA	0.1 mm	0.004 in	SPDT	On-Mom	IP40	Quick Connect - 0.110" (2.8mm)	153 gf	Round (Pin Plunger)	0.024 in	0.6 mm
Omron Electronics Inc-EMC Div SSG-01L1T	0.04 in	1 mm	125 V	30 V	6.118 gf	10000000 Cycles	200000 Cycles	0.345 in	8.8 mm	Chassis Mount	125 °C	-25 °C	100 mA	0.8 mm	0.031 "	SPDT	On-Mom	IP40	Quick Connect - 0.110" (2.8mm)	61 gf	Lever Straight
Omron Electronics Inc-EMC Div SSG-01H	0.015 "	0.4 mm	125 V	30 V	25 gf	10000000 Cycles	200000 Cycles	0.33 in	8.4 mm	Chassis Mount	125 °C	-25 °C	100 mA	0.1 mm	0.004 in	SPDT	On-Mom	IP40	Solder Lug	153 gf	Round (Pin Plunger)	0.024 in	0.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.71
