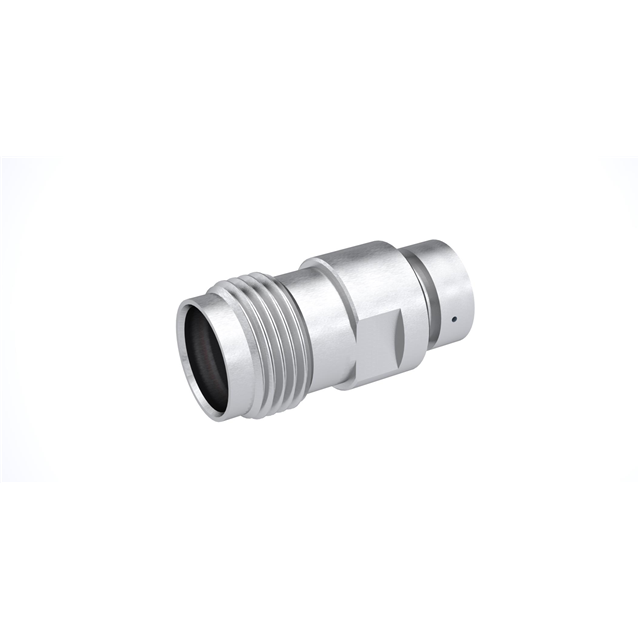

R143228700

Active

Radiall USA, Inc.

TNC 18 / STRAIGHT JACK SOLDER TY

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC 18 / STRAIGHT JACK SOLDER TY

Technical Specifications

Parameters and characteristics for this part

Specification	R143228700

Body Material	Stainless Steel
Cable Group	0.25 in
Cable Group	RG-401
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Mating Cycles	Contact Termination	Body Material	Impedance	Frequency - Max [Max]	Connector Type	Center Contact Material	Number of Ports	Cable Group	Cable Group	Voltage Rating	Connector Style	Shield Termination	Mounting Type	Dielectric Material	Housing Color	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. R143228700	500	Solder	Stainless Steel	50 Ohms	18 GHz	Female Socket Jack	Bronze	1	0.25 in	RG-401	500 V	TNC	Solder	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	Gold	-65 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 128.62

General part information

TNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
