TR9CI1670LCP-N(R6B)

Active

GlobTek, Inc.

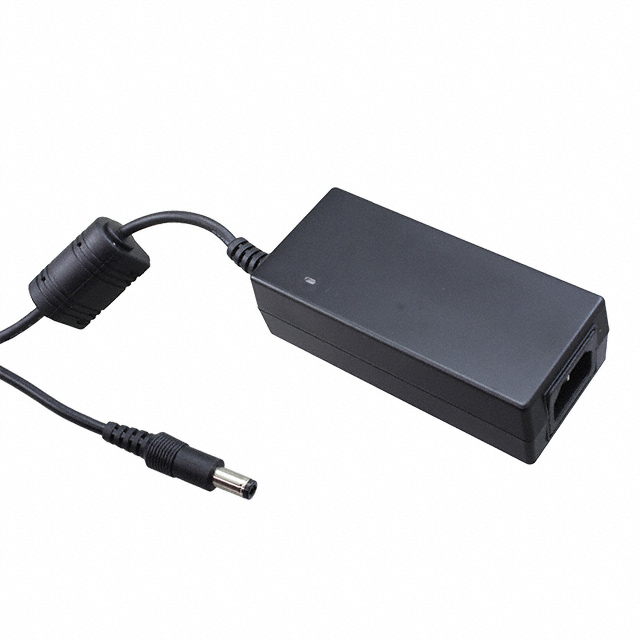

AC/DC DESKTOP ADAPTER 24V 40W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 24V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CI1670LCP-N(R6B)

Applications	ITE (Commercial)
Approval Agency	CE, UKRSepro, CB, PSE, LPS, cULus, FCC, VCCI, EAC
Cord Length	48.4 in
Cord Length	1.23 m
Current - Output (Max) [Max]	1.67 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension [x]	111 mm
Size / Dimension [x]	4.37 in
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.05 in
Size / Dimension [z]	32.3 mm
Size / Dimension [z]	1.27 in
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Region Utilized	Input Connector	Form	Polarization	Input Type	Power (Watts)	Standard Number	Output Connector	Output Connector [diameter]	Output Connector [x]	No Load Power Consumption [Max]	Voltage - Output	Current - Output (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Cord Length	Cord Length
GlobTek, Inc. TR9CI1670LCP-N(R6B)	International	IEC 320-C14	Desktop (Class I)	Positive Center	Cord	40 W	60950-1	Barrel Plug	2.5 mm 5.5 mm	11 mm	75 mW	24 V	1.67 A	ITE (Commercial)	40 °C	0 °C	CB CE cULus EAC FCC LPS PSE UKRSepro VCCI	Level VI	90 VAC	264 VAC	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	48.4 in	1.23 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 40 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
