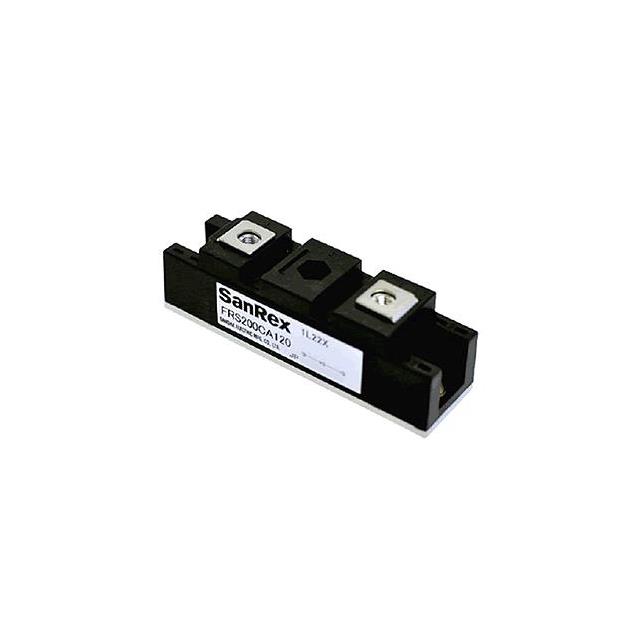

FRS200CA120

Active

SanRex Corporation

1.8V@200A 350NS 200A SWITCHING DIODES ROHS

Search across all available documentation for this part.

Active

SanRex Corporation

1.8V@200A 350NS 200A SWITCHING DIODES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	FRS200CA120

Current - Average Rectified (Io)	200 A
Current - Reverse Leakage @ Vr	10 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Reverse Recovery Time (trr)	350 ns
Speed	200 mA, 500 ns
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.8 V

Part	Reverse Recovery Time (trr)	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Package / Case	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology
SanRex Corporation FRS200CA120	350 ns	Chassis Mount	1.2 kV	200 mA 500 ns	Module	10 mA	200 A	1.8 V	150 °C	-40 °C	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1200 V 200A Chassis Mount
