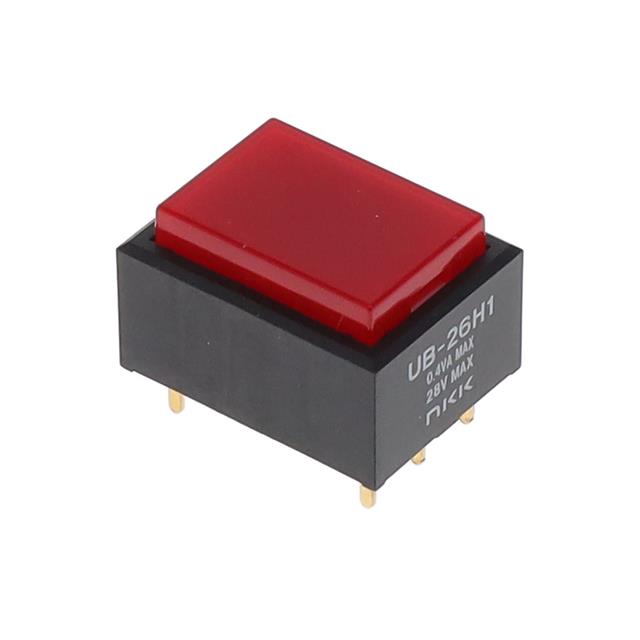

UB26RKG035C-CC

Active

NKK Switches

SWITCH PUSH DPDT 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH PUSH DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	UB26RKG035C-CC

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	Stainless Steel
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.85 VDC
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Color - Actuator/Cap	Mechanical Life	Termination Style	Actuator Marking	Switch Function	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Illumination Voltage (Nominal)	Voltage Rating - AC	Mounting Type	Voltage Rating - DC	Circuit	Current Rating (Amps)	Type	Features	Actuator Type
NKK Switches UB26RKG035C-CC	Red	200000 Cycles	PC Pin	No Marking	On-On	LED Red	50 °C	-25 °C	200000 Cycles	1.85 VDC	28 V	Through Hole	28 V	DPDT	0.4 VA	Illuminated Standard	Stainless Steel	Rectangular Button
NKK Switches UB26RKG035C		200000 Cycles	PC Pin	No Marking	On-On	LED Red	50 °C	-25 °C	200000 Cycles	1.85 VDC	28 V	Through Hole	28 V	DPDT	0.4 VA	Illuminated Standard	Stainless Steel	Plunger for Cap
NKK Switches UB26RKG035D-DD	Amber	200000 Cycles	PC Pin	No Marking	On-On	Amber LED	50 °C	-25 °C	200000 Cycles	2 VDC	28 V	Through Hole	28 V	DPDT	0.4 VA	Illuminated Standard	Stainless Steel	Rectangular Button

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard, Illuminated Through Hole
