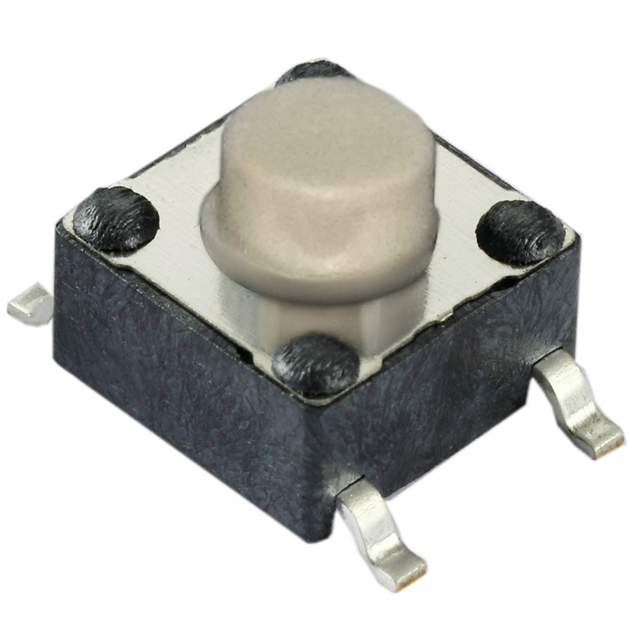

222AMVBBR

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	222AMVBBR

Actuator Height off PCB, Vertical	5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

Part	Circuit	Illumination	Actuator Orientation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Height off PCB, Vertical [z]	Switch Function	Switch Travel	Contact Rating @ Voltage	Actuator Type	Mounting Type	Outline [y]	Outline [x]	Termination Style	Operating Force	Actuator Height off PCB, Vertical
Tusonix a Subsidiary of CTS Electronic Components 222AMVAAR	SPST-NO	Non-Illuminated	Top Actuated	Tactile Feedback	85 °C	-40 °C	1000000 Cycles	4.3 mm	Off-Mom	0.25 mm	0.05 A 12 VDC	Standard	Surface Mount	6.2 mm	6.2 mm	Gull Wing
Tusonix a Subsidiary of CTS Electronic Components 222AMVDBR	SPST-NO	Non-Illuminated	Top Actuated	Tactile Feedback	85 °C	-40 °C	200000 Cycles		Off-Mom	0.25 mm	0.05 A 12 VDC	Standard	Surface Mount	6.2 mm	6.2 mm	Gull Wing	260 gf	9.5 mm
Tusonix a Subsidiary of CTS Electronic Components 222AMVABR	SPST-NO	Non-Illuminated	Top Actuated	Tactile Feedback	85 °C	-40 °C	200000 Cycles	4.3 mm	Off-Mom	0.25 mm	0.05 A 12 VDC	Standard	Surface Mount	6.2 mm	6.2 mm	Gull Wing	260 gf
Tusonix a Subsidiary of CTS Electronic Components 222AMVCAR	SPST-NO	Non-Illuminated	Top Actuated	Tactile Feedback	85 °C	-40 °C	1000000 Cycles	7 mm	Off-Mom	0.25 mm	0.05 A 12 VDC	Standard	Surface Mount	6.2 mm	6.2 mm	Gull Wing
Tusonix a Subsidiary of CTS Electronic Components 222AMVBBR	SPST-NO	Non-Illuminated	Top Actuated	Tactile Feedback	85 °C	-40 °C	200000 Cycles		Off-Mom	0.25 mm	0.05 A 12 VDC	Standard	Surface Mount	6.2 mm	6.2 mm	Gull Wing	260 gf	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.14

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
