PDM1-S5-D12-S

Obsolete

CUI Inc.

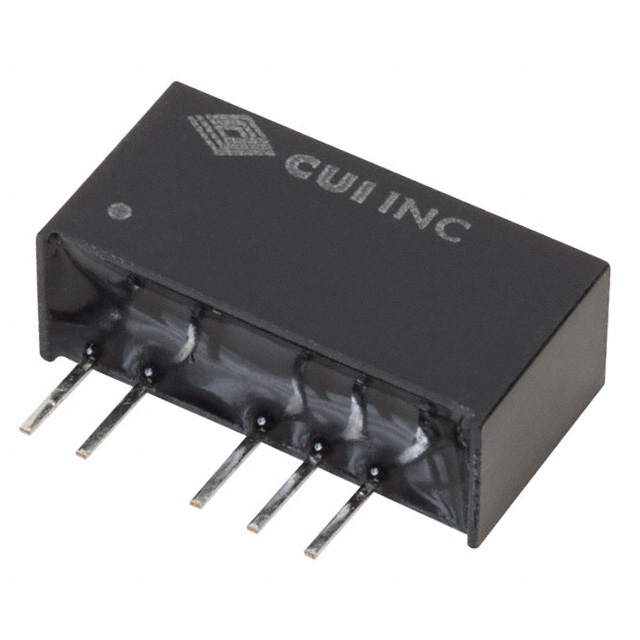

MODULE DC-DC 5VIN 2-OUT -12V/12V -0.042A/0.042A 1W 5-PIN SIP MODULE

Deep-Dive with AI

Search across all available documentation for this part.

PDM1-S5-D12-S

Obsolete

CUI Inc.

MODULE DC-DC 5VIN 2-OUT -12V/12V -0.042A/0.042A 1W 5-PIN SIP MODULE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PDM1-S5-D12-S

Applications	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output (Max) [Max]	42 mA
Current - Output (Max) [Max]	42 mA
Efficiency	80 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	6-SIP Module, 5 Leads
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.5 mm
Size / Dimension [y]	0.24 "
Size / Dimension [y]	6 mm
Size / Dimension [z]	9.3 mm
Size / Dimension [z]	0.37 in
Standard Number	55024, 60950-1, 55032 Class A
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

PDM1-S5 Series

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Features	Mounting Type	Efficiency	Approval Agency	Standard Number	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Output 1	Number of Outputs	Current - Output (Max) [Max]	Standard Number	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
CUI Inc. PDM1-S5-S12-S	ITE (Commercial)	-40 °C	105 ░C	6-SIP Module 4 Leads	4.5 V	1.5 kV	0.77 in	19.5 mm	0.24 "	9.3 mm	6 mm	0.37 in	SCP	Through Hole	80 %	CB Scheme EN IEC UL	55024 55032 60950.1 61000.32 61000.33	Isolated Module	83 mA	5.5 V	12 V	1
CUI Inc. PDM1-S5-D12-S	ITE (Commercial)	-40 °C	105 ░C	6-SIP Module 5 Leads	4.5 V	1.5 kV	0.77 in	19.5 mm	0.24 "	9.3 mm	6 mm	0.37 in	SCP	Through Hole	80 %	CB Scheme EN IEC UL		Isolated Module	42 mA	5.5 V	12 V	2	42 mA	55024 55032 Class A 60950-1	-12 V
CUI Inc. PDM1-S5-D5-S	ITE (Commercial)	-40 °C	105 ░C	6-SIP Module 5 Leads	4.5 V	1.5 kV	0.77 in	19.5 mm	0.24 "	9.3 mm	6 mm	0.37 in	SCP	Through Hole	80 %	CB Scheme EN IEC UL		Isolated Module		5.5 V	5 V	2		55024 55032 Class A 60950-1	-5 V	100 mA	100 mA
CUI Inc. PDM1-S5-S15-S	ITE (Commercial)	-40 °C	105 ░C	6-SIP Module 4 Leads	4.5 V	1.5 kV	0.77 in	19.5 mm	0.24 "	9.3 mm	6 mm	0.37 in	SCP	Through Hole	81 %	CB Scheme EN IEC UL	55024 55032 60950.1 61000.32 61000.33	Isolated Module	67 mA	5.5 V	15 V	1
CUI Inc. PDM1-S5-D15-S	ITE (Commercial)	-40 °C	105 ░C	6-SIP Module 5 Leads	4.5 V	1.5 kV	0.77 in	19.5 mm	0.24 "	9.3 mm	6 mm	0.37 in	SCP	Through Hole	81 %	CB Scheme EN IEC UL		Isolated Module		5.5 V	15 V	2		55024 55032 Class A 60950-1	-15 V		33 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.45

Description

General part information

PDM1-S5 Series

Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
