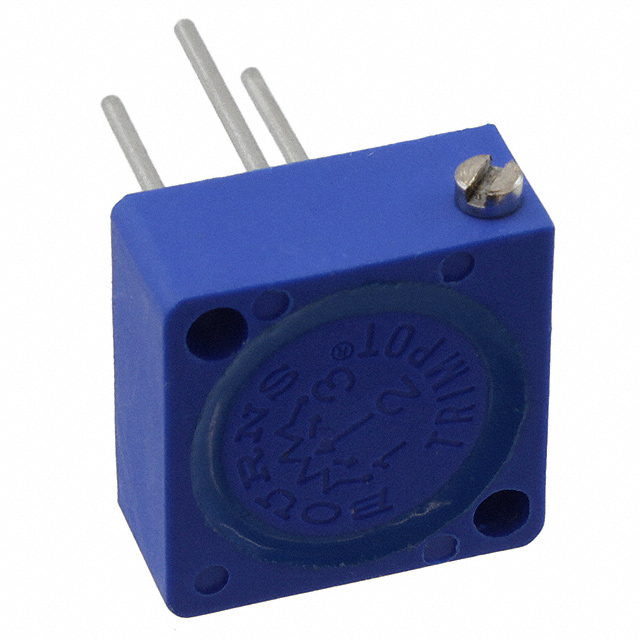

3250P-1-100

Active

Bourns Inc.

RES,WIREWOUND,10OHMS,5+/-% TOL,-50,50PPM-TC,5050-CASE

Search across all available documentation for this part.

Active

Bourns Inc.

RES,WIREWOUND,10OHMS,5+/-% TOL,-50,50PPM-TC,5050-CASE

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Termination Style	Resistance	Number of Turns	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Adjustment Type	Tolerance	Mounting Type	Resistive Material
Bourns Inc. 3250P-1-203	1 W	PC Pins	20 kOhms	25	50 ppm/°C	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment	5 %	Chassis Mount	Wirewound
Bourns Inc. 3250P-1-202	1 W	PC Pins	2 kOhms	25	50 ppm/°C	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment	5 %	Chassis Mount	Wirewound
Bourns Inc. 3250P-1-301	1 W	PC Pins	300 Ohms	25	50 ppm/°C	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment	5 %	Chassis Mount	Wirewound
Bourns Inc. 3250P-1-100	1 W	PC Pins	10 Ohms	25	50 ppm/°C	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment	5 %	Chassis Mount	Wirewound
Bourns Inc. 3250P-1-501	1 W	PC Pins	500 Ohms	25	50 ppm/°C	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment	5 %	Chassis Mount	Wirewound
Bourns Inc. 3250P-1-503	1 W	PC Pins	50 kOhms	25	50 ppm/°C	0.22 "	5.59 mm	12.7 mm	0.5 in	Side Adjustment	5 %	Chassis Mount	Wirewound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Ohms 1W PC Pins Chassis Mount Trimmer Potentiometer Wirewound 25.0 Turn Side Adjustment

Technical documentation and resources
