60-11-4511-1671

Active

Parker Chomerics

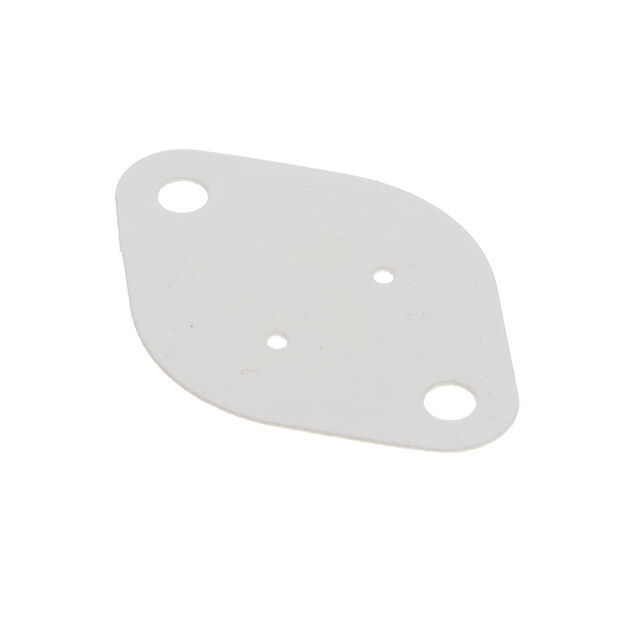

THERM PAD 40.46X27.94MM WHT

Search across all available documentation for this part.

Active

Parker Chomerics

THERM PAD 40.46X27.94MM WHT

Technical Specifications

Parameters and characteristics for this part

Part	Shelf Life	Backing, Carrier	Outline [y]	Outline [x]	Type	Thickness	Thickness	Thermal Conductivity	Color	Usage	Shape	Thickness [custom]	Thickness [custom]	Material
Parker Chomerics 60-11-4511-T441-08	Indefinite	Fiberglass	27.94 mm	40.46 mm	Insulator Pad Sheet	0.008 in	0.203 mm	1.1 W/m-K	Pink	TO-3	Rhombus
Parker Chomerics 60-11-4511-T500	Indefinite	Fiberglass	27.94 mm	40.46 mm	Insulator Pad Sheet			2.1 W/m-K	Green	TO-3	Rhombus	0.254 mm	0.01 in	Acrylic
Parker Chomerics 60-11-4511-1671	Indefinite	Fiberglass	27.94 mm	40.46 mm	Insulator Pad Sheet	0.015 in	0.381 mm	2.6 W/m-K	White	TO-3	Rhombus			Acrylic
Parker Chomerics 60-11-4511-1674	Indefinite	Fiberglass	27.94 mm	40.46 mm	Insulator Pad Sheet				Blue	TO-3	Rhombus	0.254 mm	0.01 in	Silicone

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad White 40.46mm x 27.94mm Rhombus
