AB-FC02406-19700-XA2
ActiveAmerican Bright Optoelectronics Corporation

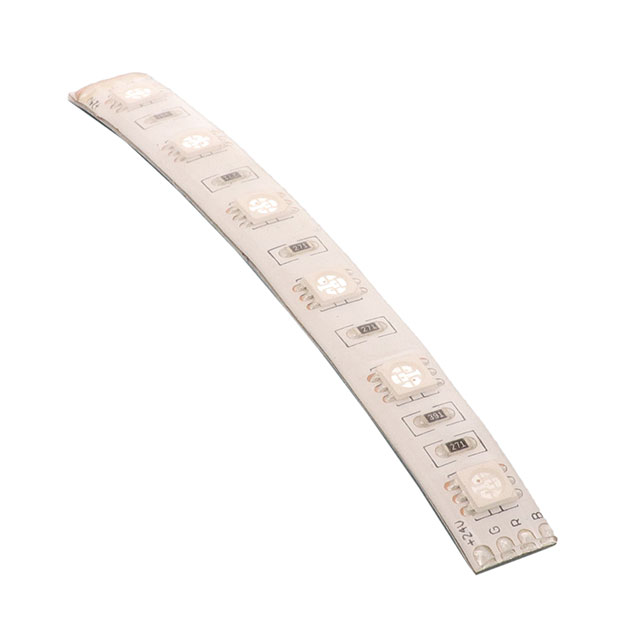

LED MOD AB-FC RGB LNR STRIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB-FC02406-19700-XA2 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Linear Light Strip, Flexible |
| Current - Test [custom] | 840 mA |
| Current - Test [custom] | 840 mA |
| Current - Test [custom] | 840 mA |
| Features | IP65 |
| Height [z] | 2.5 mm |
| Lens Type | Flat |
| Lumens/Watt @ Current - Test [custom] | 58 lm/W |
| Lumens/Watt @ Current - Test [custom] | 25 lm/W |
| Lumens/Watt @ Current - Test [custom] | 18 lm/W |
| Luminous Flux @ Current/Temperature [custom] | 248 lm |
| Luminous Flux @ Current/Temperature [custom] | 56 lm |
| Luminous Flux @ Current/Temperature [custom] | 90 lm |
| Size / Dimension [x] | 5000 mm |
| Size / Dimension [y] | 10 mm |
| Type | LED Module |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 24 V |
| Wavelength | 470 nm |
| Wavelength [Max] | 475 nm |
| Wavelength [Min] | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.23 | |
| 10 | $ 2.28 | |||
| Tape & Reel (TR) | 50 | $ 2.28 | ||
| 100 | $ 1.87 | |||
| 500 | $ 1.58 | |||
| 1250 | $ 1.45 | |||
| 2500 | $ 1.39 | |||
| 5000 | $ 1.36 | |||
Description
General part information
AB-FC02406 Series
LED Lighting COBs Engines Modules LED Module AB-FC Red, Green, Blue (RGB) Linear Light Strip, Flexible
