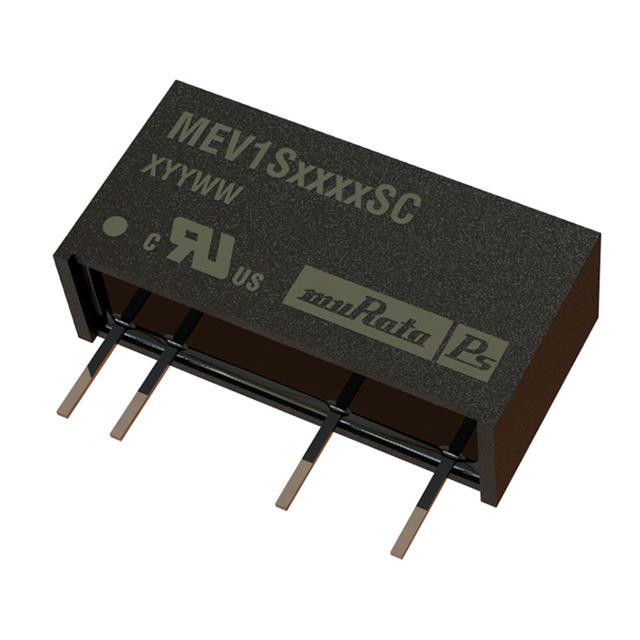

MEV1S1212SC
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Search across all available documentation for this part.
MEV1S1212SC
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MEV1S1212SC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 84 mA |
| Efficiency | 88 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension [x] | 19.7 mm |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [y] | 6.2 mm |
| Size / Dimension [y] | 0.24 " |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
MEV1S12 Series
| Part | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Number of Outputs | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Mounting Type | Voltage - Isolation | Package / Case | Applications | Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. | 13.2 V | 19.7 mm | 10 mm | 0.28 " | 7 mm | 0.39 " | 0.77 in | 1 | 200 mA | 10.8 V | 85 °C | -40 °C | 5 V | Through Hole | 3000 V | 14-DIP Module 5 Leads | ITE (Commercial) | Isolated Module | 84 % |
Murata Power Solutions Inc. | 13.2 V | 19.7 mm | 10 mm | 0.28 " | 7 mm | 0.39 " | 0.77 in | 1 | 10.8 V | 85 °C | -40 °C | 9 V | Through Hole | 3000 V | 14-DIP Module 5 Leads | ITE (Commercial) | Isolated Module | 86 % | |
Murata Power Solutions Inc. | 13.2 V | 19.7 mm | 10 mm | 0.28 " | 7 mm | 0.39 " | 0.77 in | 1 | 84 mA | 10.8 V | 85 °C | -40 °C | 12 V | Through Hole | 3000 V | 14-DIP Module 5 Leads | ITE (Commercial) | Isolated Module | 88 % |
Murata Power Solutions Inc. | 13.2 V | 19.7 mm | 6.2 mm | 0.4 " | 10.2 mm | 0.24 " | 0.77 in | 1 | 10.8 V | 85 °C | -40 °C | 9 V | Through Hole | 3000 V | 7-SIP Module 5 Leads | ITE (Commercial) | Isolated Module | 86 % | |
Murata Power Solutions Inc. | 13.2 V | 19.7 mm | 6.2 mm | 0.4 " | 10.2 mm | 0.24 " | 0.77 in | 1 | 84 mA | 10.8 V | 85 °C | -40 °C | 12 V | Through Hole | 3000 V | 7-SIP Module 5 Leads | ITE (Commercial) | Isolated Module | 88 % |
Murata Power Solutions Inc. | 13.2 V | 19.6 mm | 6.1 mm | 0.4 " | 10.2 mm | 0.24 " | 0.77 in | 1 | 200 mA | 10.8 V | 85 °C | -40 °C | 5 V | Through Hole | 3000 V | 6-SIP Module 5 Leads | ITE (Commercial) | Isolated Module | 84 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MEV1S12 Series
The RX2R1 series DIN rail mount Analogue Timer offers a LED status indicator, relay output and Screw termination. This series features 1 second to 100 hours timing ranges (7 ranges) and 2.5kV/1 minute/1mA/50Hz breakdown voltage according to IEC/EN 61812-1 standard. It is conformed to IEC/EN 61812-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 standards.
