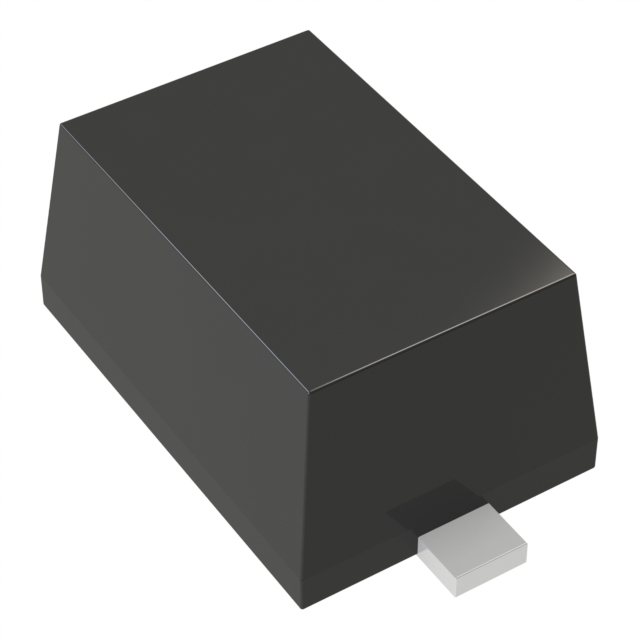

XBP1012-G
ActiveTorex Semiconductor Ltd
TVS DIODE 12VWM 24VC SOD323P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XBP1012-G
ActiveTorex Semiconductor Ltd
TVS DIODE 12VWM 24VC SOD323P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XBP1012-G |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 100 pF |
| Current - Peak Pulse (10/1000µs) | 15 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-323F, SC-90 |
| Power - Peak Pulse | 350 W |
| Power Line Protection | False |
| Supplier Device Package | SOD-323P |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 13.3 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 24 V |
| Voltage - Reverse Standoff (Typ) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.09 | |||
| Tape & Reel (TR) | 5000 | $ 0.09 | ||
| 10000 | $ 0.08 | |||
| 25000 | $ 0.08 | |||
| 50000 | $ 0.07 | |||
| 125000 | $ 0.07 | |||
Description
General part information
XBP1012 Series
24V Clamp 15A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323P
