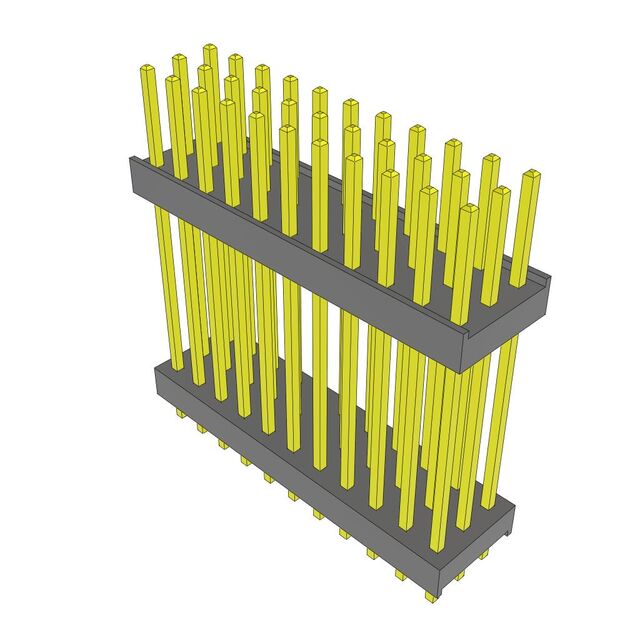

ZW-11-20-L-T-790-090

Active

Samtec Inc.

CONN BRD STACK .100" 33POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK .100" 33POS

Technical Specifications

Parameters and characteristics for this part

Specification	ZW-11-20-L-T-790-090

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	1.13 in
Length - Overall Pin [x]	28.702 mm
Length - Post (Mating) [x]	0.25 in
Length - Post (Mating) [x]	6.35 mm
Length - Stack Height [x]	20.066 mm
Length - Stack Height [x]	0.79 in
Length - Tail [x]	2.286 mm
Length - Tail [x]	0.09 in
Mounting Type	Through Hole
Number of Positions	33
Number of Rows	3
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

Part	Termination	Pitch [x]	Pitch [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Number of Rows	Length - Tail [x]	Length - Tail [x]	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Color	Row Spacing [x]	Row Spacing	Length - Overall Pin [x]	Length - Overall Pin [x]	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Tail	Length - Tail	Length - Tail [custom]	Length - Tail [custom]
Samtec Inc. ZW-11-20-L-T-790-090	Solder	2.54 mm	0.1 in	0.25 Ám	10 Áin	33	3	2.286 mm	0.09 in	20.066 mm	0.79 in	Gold	Black	0.1 in	2.54 mm	1.13 in	28.702 mm	Through Hole	0.25 in	6.35 mm
Samtec Inc. ZW-11-20-T-S-590-385	Solder	2.54 mm	0.1 in			11	1			14.986 mm	0.59 in	Tin	Black			1.13 in	28.702 mm	Through Hole	0.155 in	3.937 mm	0.385 in	9.779 mm
Samtec Inc. ZW-11-20-G-D-680-225	Solder	2.54 mm	0.1 in	0.25 Ám	10 Áin	22 positions	2	5.715 mm	0.225 in	17.272 mm	0.68 in	Gold	Black	0.1 in	2.54 mm	1.13 in	28.702 mm	Through Hole	0.225 in	5.715 mm
Samtec Inc. ZW-11-20-S-S-500-130-LL	Kinked Pin Solder	2.54 mm	0.1 in	0.76 µm	30 µin	11	1	3.3 mm	0.13 in	12.7 mm	0.5 in	Gold	Black			1.13 in	28.702 mm	Through Hole	0.5 in	12.7 mm
Samtec Inc. ZW-11-20-S-S-500-130	Solder	2.54 mm	0.1 in	0.76 µm	30 µin	11	1	3.302 mm	0.13 in	12.7 mm	0.5 in	Gold	Black			1.13 in	28.702 mm	Through Hole	0.5 in	12.7 mm
Samtec Inc. ZW-11-20-G-D-700-350	Solder	2.54 mm	0.1 in	0.25 Ám	10 Áin	22 positions	2			17.78 mm	0.7 in	Gold	Black	0.1 in	2.54 mm	1.13 in	28.702 mm	Through Hole					8.89 mm	0.35 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.00

General part information

33 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
