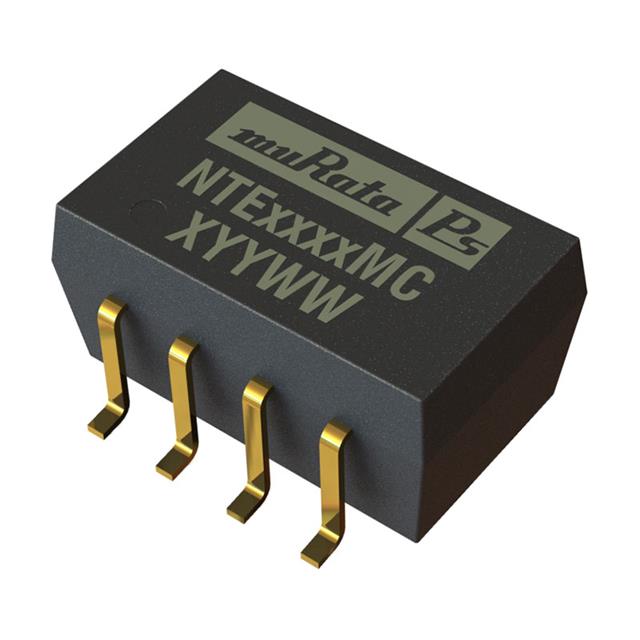

NTE1212MC
ActiveISOLATED SURFACE MOUNT DC/DC CONVERTER, MINIATURE, ITE, 1:1, 1 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Search across all available documentation for this part.
NTE1212MC
ActiveISOLATED SURFACE MOUNT DC/DC CONVERTER, MINIATURE, ITE, 1:1, 1 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NTE1212MC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 83 mA |
| Efficiency | 74 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-SMD Module, 8 Leads |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [z] | 0.26 " |
| Size / Dimension [z] | 6.6 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NTE12 Series
The NTE1212MC is an isolated single-output SM DC/DC Converter employs lead-frame technology and transfer moulding techniques to bring all of the benefits of IC style to hybrid circuitry. The co-planarity of the pin positions is based upon IEC 191-6:1990. The device is suitable for all applications where high volume production is envisaged.
