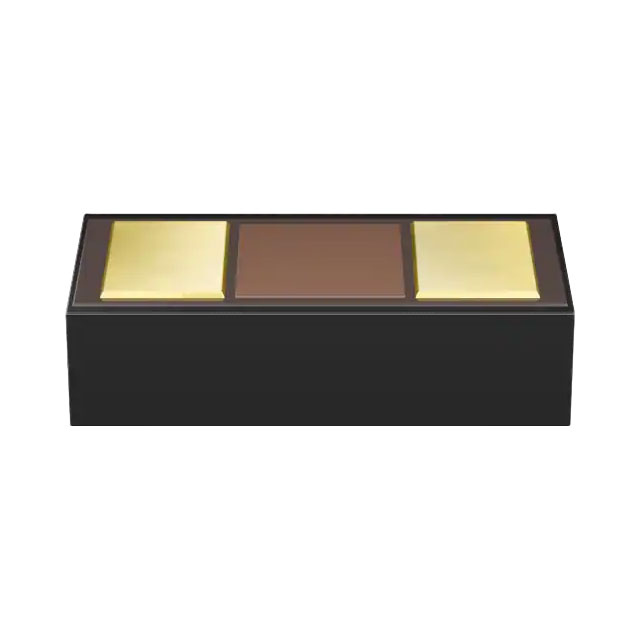

B74121G0160M060
ActiveEPCOS - TDK Electronics
16VDC,0201,BI-DIR, 5PF, 1NA@16V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B74121G0160M060
ActiveEPCOS - TDK Electronics
16VDC,0201,BI-DIR, 5PF, 1NA@16V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B74121G0160M060 |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 5 pF |
| Current - Peak Pulse (10/1000µs) | 16 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Power Line Protection | False |
| Supplier Device Package | 0201 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 17 V |
| Voltage - Clamping (Max) @ Ipp | 28 V |
| Voltage - Reverse Standoff (Typ) [Max] | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.18 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.05 | |||
| 2000 | $ 0.04 | |||
| 5000 | $ 0.04 | |||
| 10000 | $ 0.03 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.18 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.05 | |||
| 2000 | $ 0.04 | |||
| 5000 | $ 0.04 | |||
| 10000 | $ 0.03 | |||
| Tape & Reel (TR) | 20000 | $ 0.03 | ||
| 40000 | $ 0.03 | |||
| 60000 | $ 0.03 | |||
| 100000 | $ 0.03 | |||
Description
General part information
B74121 Series
28V (Typ) Clamp 16A Ipp Tvs Diode Surface Mount 0201
