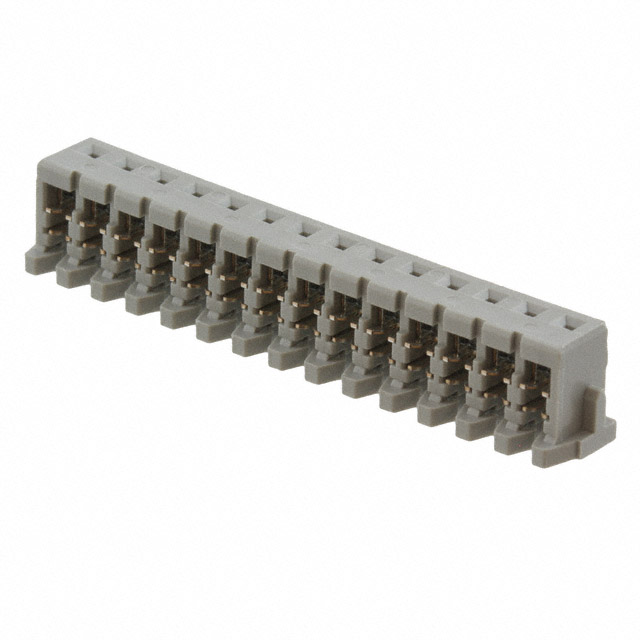

14KR-6H-P
ActiveJST Sales America Inc.
CONN SOCKET 14POS IDC 26AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
14KR-6H-P
ActiveJST Sales America Inc.
CONN SOCKET 14POS IDC 26AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 14KR-6H-P |
|---|---|
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Socket |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge | 26 AWG |
| Wire Type | Discrete |
14KR Series
| Part | Connector Type | Wire Type | Number of Positions | Wire Gauge | Mounting Type | Color | Number of Rows | Pitch [x] | Pitch [x] | Contact Finish | Cable Termination | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | Socket | Discrete | 14 | 26 AWG | Free Hanging (In-Line) | Gray | 1 | 0.079 in | 2 mm | Tin | IDC | Female Socket |
JST Sales America Inc. | Socket | Discrete | 14 | 26 AWG | Free Hanging (In-Line) Right Angle | Natural | 1 | 0.079 in | 2 mm | Tin | IDC | Female Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.77 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.55 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.40 | |||
| 2500 | $ 0.36 | |||
Description
General part information
14KR Series
14 Position Rectangular Socket Connector IDC Tin 26 AWG
