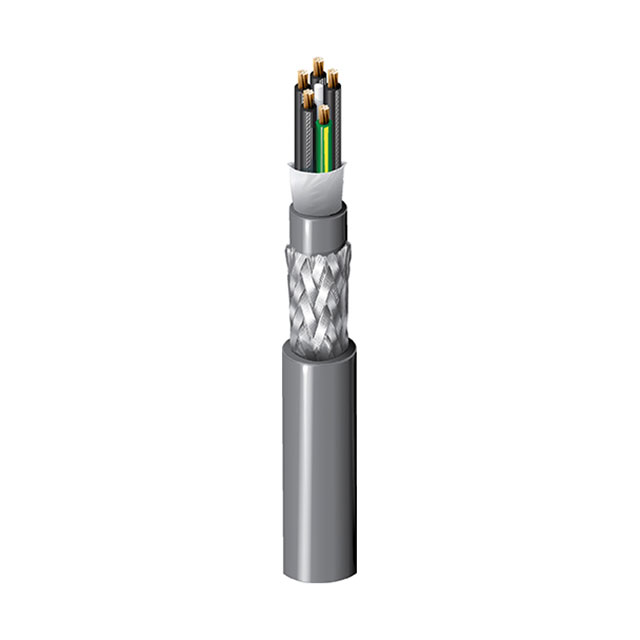

7403WS 0605000
ActiveBelden Inc.
CABLE 5COND 20AWG CHRM SHD
Deep-Dive with AI
Search across all available documentation for this part.
7403WS 0605000
ActiveBelden Inc.
CABLE 5COND 20AWG CHRM SHD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7403WS 0605000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 32 AWG |
| Features | Oil Resistant, UV Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.339 in |
| Jacket (Insulation) Diameter [diameter] | 8.61 mm |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Jacket (Insulation) Thickness | 1.067 mm |
| Jacket (Insulation) Thickness | 0.042 in |
| Jacket Color | Chrome |
| Number of Conductors | 5 |
| Ratings | UL Style 20327 |
| Shield Coverage | 85 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Voltage | 300 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 5000 | $ 3.94 | |
Description
General part information
7403WS Series
5 Conductor Multi-Conductor Cable Chrome 20 AWG Braid 5000' (1524.0m)
