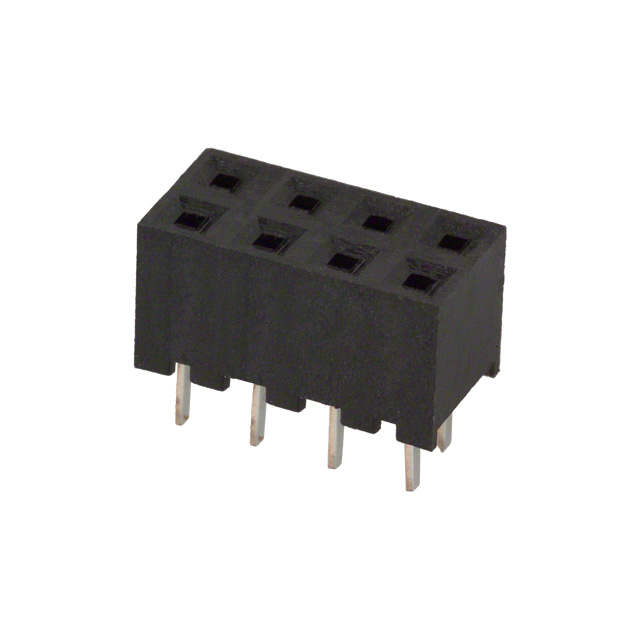

A3C-8DA-2DSC(71)

Active

Hirose Electric USA, Inc.

CONN RCPT 8POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A3, A4 Series Datasheet

A3C-8DA-2DSC(71)

Active

Hirose Electric USA, Inc.

CONN RCPT 8POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet A3, A4 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3C-8DA-2DSC(71)

Applications	Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	0.079 "
Contact Length - Post	2 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Mated Stacking Heights	6 mm, 5.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

A3C-8DA Series

Part	Insulation Height [z]	Insulation Height [z]	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Contact Length - Post	Contact Length - Post	Style	Mated Stacking Heights	Applications	Termination	Insulation Material	Number of Rows	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Contact Type	Fastening Type	Insulation Color	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Number of Positions	Material Flammability Rating	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Row Spacing - Mating	Row Spacing - Mating
Hirose Electric USA, Inc. A3C-8DA-2DSA	0.165 in	4.2 mm	0.079 in	2 mm	Through Hole	0.118 in	3 mm	Board to Board Cable	5.1 mm 6 mm	General Purpose Telecommunications	Solder	Polybutylene Terephthalate (PBT)	2	Receptacle	85 °C	-55 °C	Gold	Female Socket	Push-Pull	Black	Tin	0.203 Ám	8 Áin	All	8	UL94 V-0	Square	1 çm	39.4 çin	Phosphor Bronze	0.079 in	2 mm
Hirose Electric USA, Inc. A3C-8DA-2DSC(71)	0.165 in	4.2 mm	0.079 in	2 mm	Through Hole	0.079 "	2 mm	Board to Board Cable	5.1 mm 6 mm	General Purpose Telecommunications	Solder	Polybutylene Terephthalate (PBT)	2	Receptacle	85 °C	-55 °C	Gold	Female Socket	Push-Pull	Black	Tin	0.203 Ám	8 Áin	All	8	UL94 V-0	Square	1 çm	39.4 çin	Phosphor Bronze	0.079 in	2 mm
Hirose Electric USA, Inc. A3C-8DA-2DSA(71)	0.165 in	4.2 mm	0.079 in	2 mm	Through Hole	0.118 in	3 mm	Board to Board Cable	5.1 mm 6 mm	General Purpose Telecommunications	Solder	Polybutylene Terephthalate (PBT)	2	Receptacle	85 °C	-55 °C	Gold	Female Socket	Push-Pull	Black	Tin	0.203 Ám	8 Áin	All	8	UL94 V-0	Square	1 çm	39.4 çin	Phosphor Bronze	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.79
		10	$ 1.56
		270	$ 1.26
		540	$ 1.16
		1080	$ 0.99
		5130	$ 0.88
		10260	$ 0.86

Description

General part information

A3C-8DA Series

8 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

A3, A4 Series Datasheet

Datasheet
