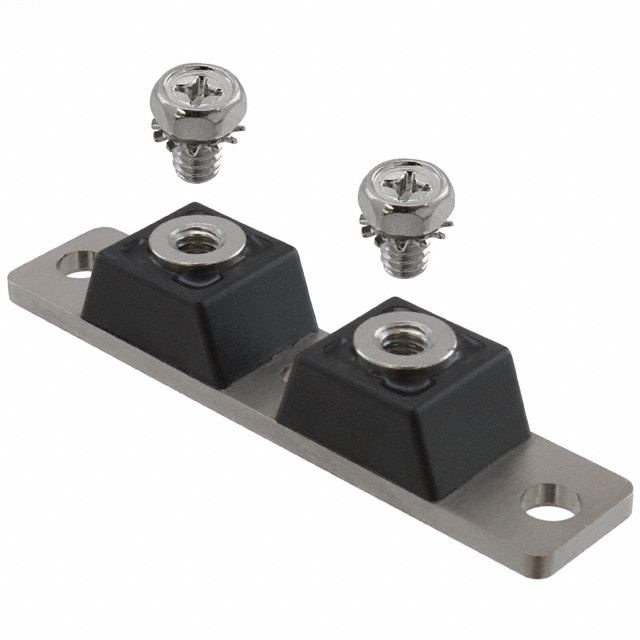

MBR120150CTR

Obsolete

GeneSiC Semiconductor

DIODE MOD SCHOTT 150V 60A 2TOWER

Search across all available documentation for this part.

Obsolete

GeneSiC Semiconductor

DIODE MOD SCHOTT 150V 60A 2TOWER

Technical Specifications

Parameters and characteristics for this part

Specification	MBR120150CTR

Current - Average Rectified (Io) (per Diode)	60 A
Current - Reverse Leakage @ Vr	1 mA
Diode Configuration	1 Pair Common Anode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	Twin Tower
Speed	200 mA, 500 ns
Supplier Device Package	Twin Tower
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If	880 mV

Part	Package / Case	Diode Configuration	Supplier Device Package	Mounting Type	Technology	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If
GeneSiC Semiconductor MBR120150CTR	Twin Tower	1 Pair Common Anode	Twin Tower	Chassis Mount	Schottky	200 mA 500 ns	150 °C	-55 °C	60 A	1 mA	880 mV
GeneSiC Semiconductor MBR120150CT	Twin Tower	1 Pair Common Cathode	Twin Tower	Chassis Mount	Schottky	200 mA 500 ns	150 °C	-55 °C	60 A	1 mA	880 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Anode 150 V 60A Chassis Mount Twin Tower
