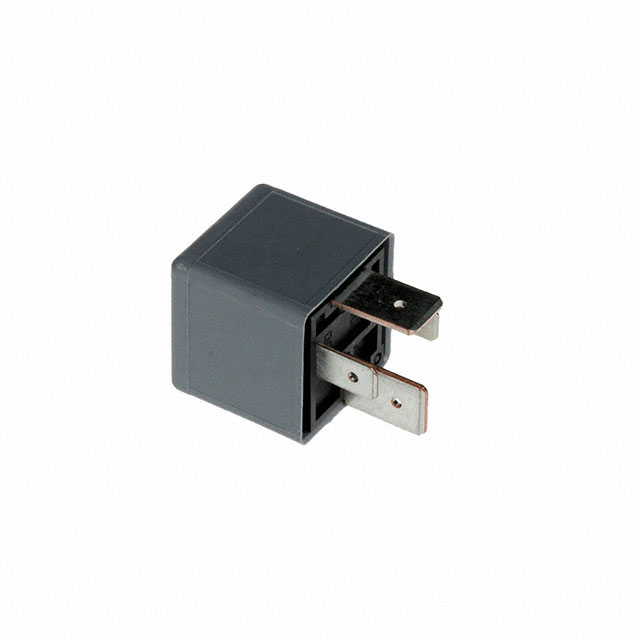

1393304-5
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 70A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1393304-5 |
|---|---|
| Coil Current | 89.6 mA |
| Coil Resistance | 268 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 70 A |
| Mounting Type | Socketable |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | 4 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 2 ms |
| Switching Voltage | 24 VDC |
| Termination Style | Quick Connect - 0.187"/0.250" |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.60 | |
| 10 | $ 14.50 | |||
Description
General part information
1393304 Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Socketable
