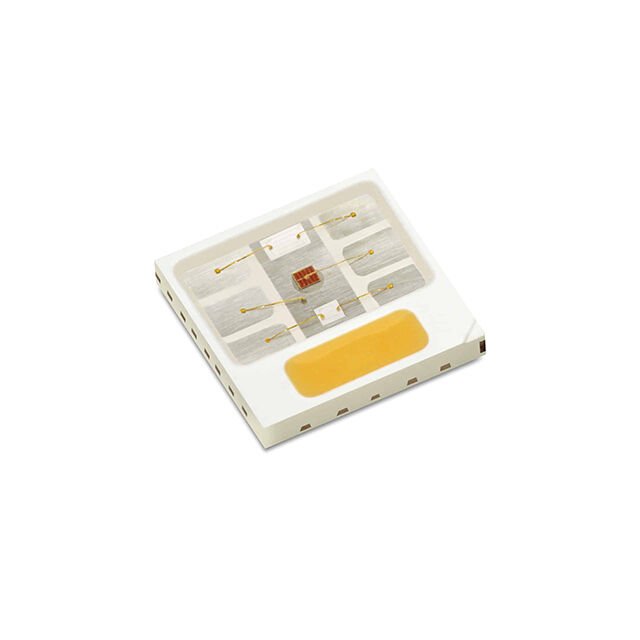

L1MC-RGU4080500MP0

Active

Lumileds

LUXEON MULTICOLOR MODULE 2.5W RED-GREEN-BLUE-4000K/80 MODULE 2.5W CCT 4000K CRI 80

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L1MC-RGU4080500MP0

Active

Lumileds

LUXEON MULTICOLOR MODULE 2.5W RED-GREEN-BLUE-4000K/80 MODULE 2.5W CCT 4000K CRI 80

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L1MC-RGU4080500MP0

Color	Red, Green, Blue
Current - Max	250 mA, 240 mA
Current - Test	120 mA
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Lumens/Watt @ Current - Test [custom]	22 lm/W
Lumens/Watt @ Current - Test [custom]	101 lm/W
Lumens/Watt @ Current - Test [custom]	71 lm/W
Luminous Flux @ Current/Temperature	Current/Temperature
Luminous Flux @ Current/Temperature [custom]	38 lm
Luminous Flux @ Current/Temperature [custom]	18 lm
Luminous Flux @ Current/Temperature [custom]	8 lm
Mounting Type	Surface Mount
Package / Case	2020 (5250 Metric)
Size / Dimension [x]	0.204 in
Size / Dimension [x]	5.18 mm
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Supplier Device Package	5052
Viewing Angle [custom]	130 °
Viewing Angle [custom]	134 °
Viewing Angle [custom]	120 °
Voltage - Forward (Vf) (Typ) [custom]	3.15 V
Voltage - Forward (Vf) (Typ) [custom]	3 V
Voltage - Forward (Vf) (Typ) [custom]	2.1 V
Wavelength	528 nm, 463 nm, 622 nm

L1MC Series

Part	Viewing Angle [custom]	Viewing Angle [custom]	Viewing Angle [custom]	Wavelength	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Color	Package / Case	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Supplier Device Package	Current - Test	Current - Max	Mounting Type	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Viewing Angle	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Height - Seated (Max)	Height - Seated (Max)	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Wavelength	Luminous Flux @ Current/Temperature
Lumileds L1MC-RGB5080500MP0	130 °	134 °	120 °	473 nm 528 nm 622 nm	0.7 mm	0.028 in	Blue Green Red	2020 (5250 Metric)	12 lm 18 lm 38 lm	3.15 V	3 V	2.1 V	0.204 in	5.18 mm	0.197 "	5 mm	5052	120 mA	240 mA 250 mA	Surface Mount	71 lm/W	101 lm/W	33 lm/W
Lumileds L1MC-RGB0028000MP0							Blue Green Red	6-PLCC		2.73 V	2.81 V	2.03 V	0.126 in	3.2 mm	0.11 in	2.8 mm		20 mA		Surface Mount	74 lm/W	165 lm/W	36 lm/W	120 °	2 lm	3 lm	9 lm	0.073 in	1.85 mm	60 mA	60 mA	60 mA	470nm Blue 525nm Green 622nm Red
Lumileds L1MC-RGB4080500MP0	130 °	134 °	120 °	473 nm 528 nm 622 nm	0.7 mm	0.028 in	Blue Green Red	2020 (5250 Metric)	12 lm 18 lm 38 lm	3.15 V	3 V	2.1 V	0.204 in	5.18 mm	0.197 "	5 mm	5052	120 mA	240 mA 250 mA	Surface Mount	71 lm/W	101 lm/W	33 lm/W
Lumileds L1MC-RGB2780500MP0	130 °	134 °	120 °	473 nm 528 nm 622 nm	0.7 mm	0.028 in	Blue Green Red	2020 (5250 Metric)	12 lm 18 lm 38 lm	3.15 V	3 V	2.1 V	0.204 in	5.18 mm	0.197 "	5 mm	5052	120 mA	240 mA 250 mA	Surface Mount	71 lm/W	101 lm/W	33 lm/W
Lumileds L1MC-RGB2290500MP0	130 °	134 °	120 °	473 nm 528 nm 622 nm	0.7 mm	0.028 in	Blue Green Red	2020 (5250 Metric)	12 lm 18 lm 38 lm	3.15 V	3 V	2.1 V	0.204 in	5.18 mm	0.197 "	5 mm	5052	120 mA	240 mA 250 mA	Surface Mount	71 lm/W	101 lm/W	33 lm/W
Lumileds L1MC-RGB0035000MP0				472 nm 528 nm 622 nm			Blue Green Red	6-SMD No Lead		2.8 V	3 V	2.1 V	0.146 in	3.7 mm	0.138 in	3.5 mm		20 mA		Surface Mount				102 °
Lumileds L1MC-RGU4080500MP0	130 °	134 °	120 °	463 nm 528 nm 622 nm	0.7 mm	0.028 in	Blue Green Red	2020 (5250 Metric)		3.15 V	3 V	2.1 V	0.204 in	5.18 mm	0.197 "	5 mm	5052	120 mA	240 mA 250 mA	Surface Mount	71 lm/W	101 lm/W	22 lm/W		8 lm	18 lm	38 lm							Current/Temperature
Lumileds L1MC-RGB6570500MP0	130 °	134 °	120 °	473 nm 528 nm 622 nm	0.7 mm	0.028 in	Blue Green Red	2020 (5250 Metric)	12 lm 18 lm 38 lm	3.15 V	3 V	2.1 V	0.204 in	5.18 mm	0.197 "	5 mm	5052	120 mA	240 mA 250 mA	Surface Mount	71 lm/W	101 lm/W	33 lm/W
Lumileds L1MC-RGB3080500MP0	130 °	134 °	120 °	473 nm 528 nm 622 nm	0.7 mm	0.028 in	Blue Green Red	2020 (5250 Metric)	12 lm 18 lm 38 lm	3.15 V	3 V	2.1 V	0.204 in	5.18 mm	0.197 "	5 mm	5052	120 mA	240 mA 250 mA	Surface Mount	71 lm/W	101 lm/W	33 lm/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.80
		10	$ 1.20
		100	$ 0.92
		500	$ 0.84
	Digi-Reel®	1	$ 1.80
		10	$ 1.20
		100	$ 0.92
		500	$ 0.84
	Tape & Reel (TR)	1000	$ 0.72
		2000	$ 0.68
		5000	$ 0.66
		10000	$ 0.65

Description

General part information

L1MC Series

LED Lighting Color LUXEON MultiColor Module 2.5W Red, Green, Blue (RGB) 622nm Red, 528nm Green, 463nm Blue 2020 (5250 Metric)
