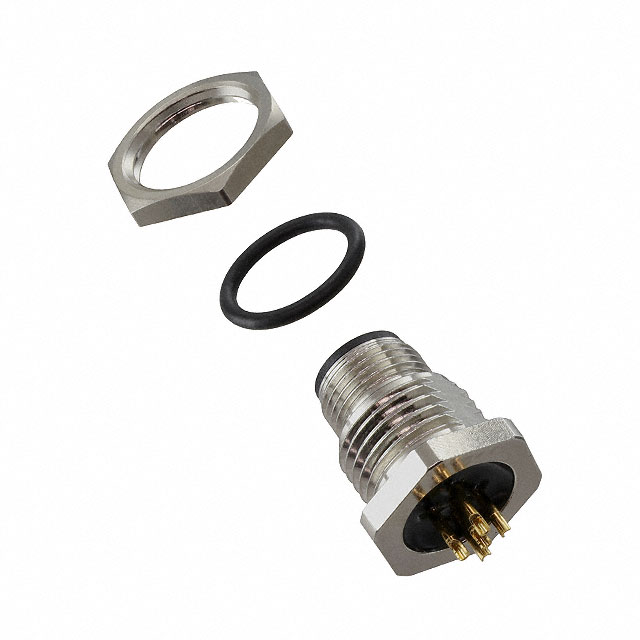

SD-MMA05-MMTPH-S70-000

Active

Adam Tech

CONN RCPT MALE 5POS SOLDER CUP

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT MALE 5POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SD-MMA05-MMTPH-S70-000

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Plastic
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Unshielded

Part	Contact Finish Thickness - Mating	Shell Size - Insert	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Contact Material	Color	Shielding	Connector Type	Current Rating (Amps)	Ingress Protection	Primary Material	Orientation	Shell Finish	Shell Material	Contact Finish - Mating	Number of Positions
Adam Tech SD-MMA05-MMTPH-S70-000	Flash	M12-5	Bulkhead - Front Side Nut	85 °C	-40 °C	Plastic	Brass	Silver	Unshielded	Male Pins Receptacle	5 A	IP67 - Dust Tight Waterproof	Metal	Keyed	Nickel	Brass	Gold
Adam Tech SD-MMA04-MMTPH-S70-000	Flash	M12-4	Bulkhead - Front Side Nut	85 °C	-40 °C	Plastic	Brass	Silver	Unshielded	Male Pins Receptacle	5 A	IP67 - Dust Tight Waterproof	Metal	Keyed	Nickel	Brass	Gold	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	16	$ 18.45
