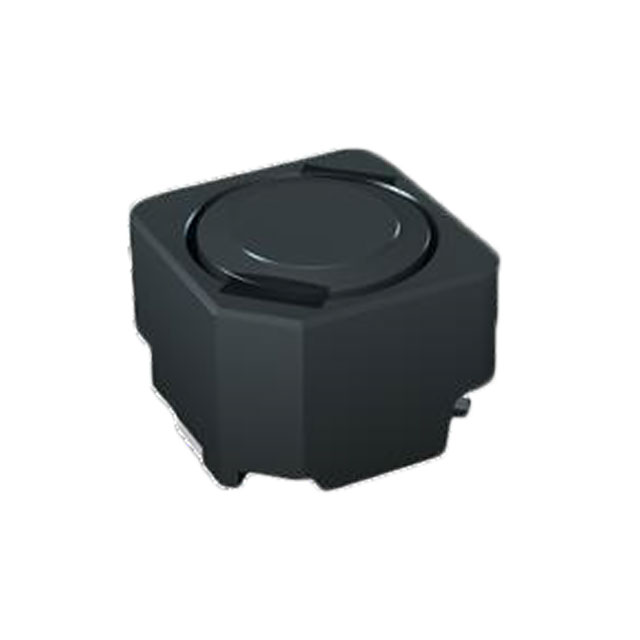

MBH12575C-100MA=P3
ObsoleteMurata Power Solutions Inc.
FIXED IND 10UH 5.2A 19.2MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MBH12575C-100MA=P3
ObsoleteMurata Power Solutions Inc.
FIXED IND 10UH 5.2A 19.2MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MBH12575C-100MA=P3 |
|---|---|
| Current - Saturation (Isat) | 7 A |
| Current Rating (Amps) | 5.2 A |
| DC Resistance (DCR) [Max] | 19.2 mOhm |
| Height - Seated (Max) [Max] [z] | 0.309 in |
| Height - Seated (Max) [Max] [z] | 7.85 mm |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 12.8 mm |
| Size / Dimension [x] | 0.504 " |
| Size / Dimension [y] | 12.8 mm |
| Size / Dimension [y] | 0.504 " |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MBH12575C Series
10 µH Shielded Drum Core, Wirewound Inductor 5.2 A 19.2mOhm Max Nonstandard
