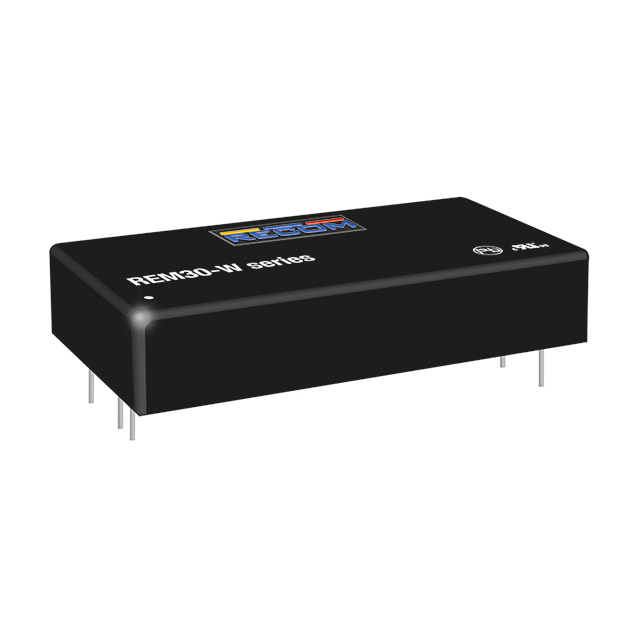

REM30-2405DW/P

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 4:1, 30 W, 2 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Product Page EN +2

REM30-2405DW/P

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 4:1, 30 W, 2 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Manufacturer Product Page EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REM30-2405DW/P

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	3 A
Current - Output (Max) [Max]	3 A
Efficiency	86 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	5000 V
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

REM30-4805 Series

Isolated DC/DC Converters - Through Hole 30W 18-75Vin 15Vout 2A

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Isolation	Voltage - Input (Min) [Min]	Power (Watts)	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Voltage - Output 2	Package / Case	Voltage - Output 1	Number of Outputs	Features	Package / Case	Current - Output (Max)
RECOM Power REM30-2405DW/P	-40 °C	105 C	Through Hole	5000 V	9 V	30 W	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial) Medical	36 V	3 A	3 A	86 %	-5 V	6-DIP Module	5 V	2	OCP OTP OVP Remote On/Off SCP UVLO
RECOM Power REM30-2405DW	-40 °C	105 C	Through Hole	5000 V	9 V	30 W	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial) Medical	36 V	3 A	3 A	86 %	-5 V	6-DIP Module	5 V	2	OCP OTP OVP SCP UVLO	5 Leads
RECOM Power REM30-4805DW/P	-40 °C	105 C	Through Hole	5000 V	18 V	30 W	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial) Medical	75 V	3 A	3 A	86.5 %	-5 V	6-DIP Module	5 V	2	OCP OTP OVP Remote On/Off SCP UVLO
RECOM Power REM30-4805SW/P	-40 °C	105 C	Through Hole	5000 V	18 V	30 W	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial) Medical	75 V		6 A	89 %		6-DIP Module	5 V	1	OCP OTP OVP Remote On/Off SCP UVLO
RECOM Power REM30-4812SW	-40 °C	105 C	Through Hole	5000 V	18 V	30 W	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial) Medical	75 V		2.5 A	89 %		6-DIP Module	12 V	1	OCP OTP OVP SCP UVLO	5 Leads
RECOM Power REM30-4805SW	-40 °C	105 C	Through Hole	5000 V	18 V	30 W	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial) Medical	75 V		6 A	89 %		6-DIP Module	5 V	1	OCP OTP OVP SCP UVLO	5 Leads
RECOM Power REM30-2424SW	-40 °C	105 C	Through Hole	5000 V	9 V	30 W	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial) Medical	36 V		1.25 A	89 %		6-DIP Module	24 V	1	OCP OTP OVP SCP UVLO	5 Leads
RECOM Power REM30-2412DW/P	-40 °C	105 C	Through Hole	5000 V	9 V	30 W	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial) Medical	36 V			89 %	-12 V	6-DIP Module	12 V	2	OCP OTP OVP Remote On/Off SCP UVLO		1.25 A
RECOM Power REM30-4812DW	-40 °C	105 C	Through Hole	5000 V	18 V	30 W	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial) Medical	75 V			90 %	-12 V	6-DIP Module	12 V	2	OCP OTP OVP SCP UVLO	5 Leads	1.25 A
RECOM Power REM30-2412SW	-40 °C	105 C	Through Hole	5000 V	9 V	30 W	Isolated Module	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	ITE (Commercial) Medical	36 V		2.5 A	89 %		6-DIP Module	12 V	1	OCP OTP OVP SCP UVLO	5 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	9	$ 133.34
Newark	Each	5	$ 161.38
		10	$ 151.24
		25	$ 140.26
		50	$ 131.81
		100	$ 124.20
Sager	N/A	1	$ 140.83
		5	$ 132.02
		10	$ 124.25
		25	$ 115.76
		50	$ 111.18
		100	$ 108.33
		250	$ 103.05

Description

General part information

REM30-4805 Series

Isolated DC/DC Converters - Through Hole 30W 18-75Vin 15Vout 2A
