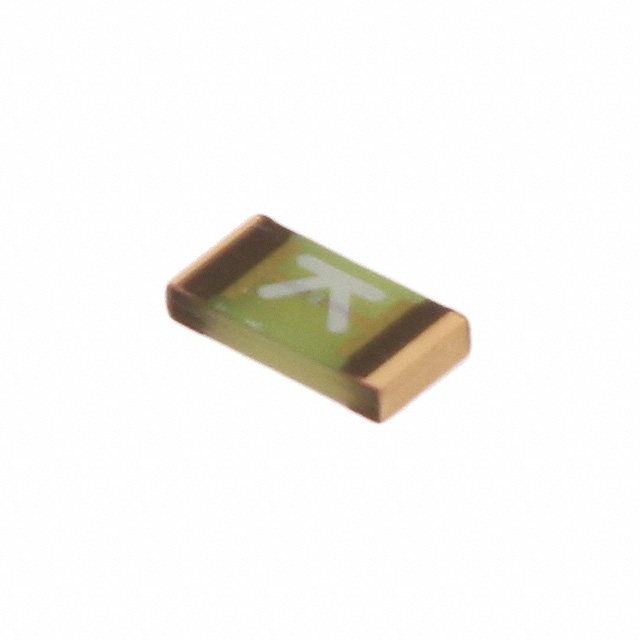

3413.0112.22
ActiveSCHURTER Inc.
FUSE BRD MT 375MA 125VAC/VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3413.0112.22
ActiveSCHURTER Inc.
FUSE BRD MT 375MA 125VAC/VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3413.0112.22 |
|---|---|
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 375 mA |
| Fuse Type | Board Mount |
| Melting I²t | 0.01 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Response Time | Fast Blow |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [z] | 0.6 mm |
| Size / Dimension [z] | 0.024 " |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 50 | $ 0.47 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.31 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 50 | $ 0.47 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.31 | |||
| Tape & Reel (TR) | 1000 | $ 0.31 | ||
Description
General part information
3413.0112 Series
375 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
