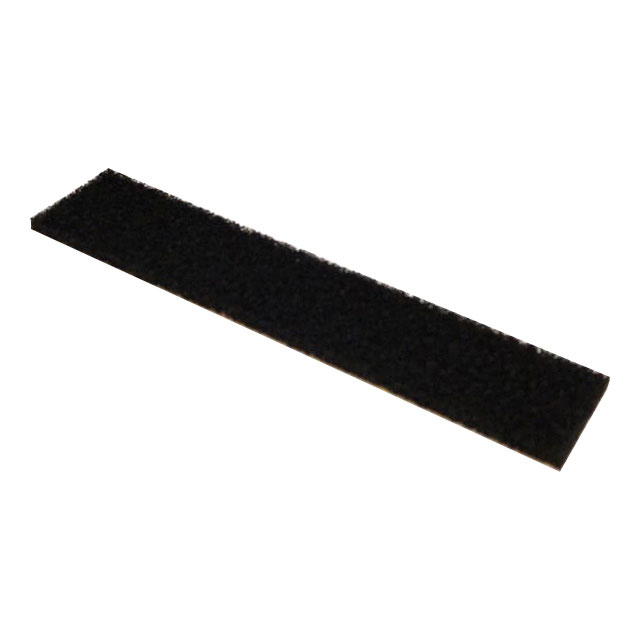

FB013-500-03-A
Active3G Shielding Specialties LP
RF EMI ABSORBING SHEET 12" X 12"
Deep-Dive with AI
Search across all available documentation for this part.
FB013-500-03-A
Active3G Shielding Specialties LP
RF EMI ABSORBING SHEET 12" X 12"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FB013-500-03-A |
|---|---|
| Material | Lossy Foam |
| Operating Temperature [Max] | 121 °C |
| Operating Temperature [Min] | -51 °C |
| Shape | Square |
| Thickness - Overall | 0.5 in |
| Thickness - Overall | 12.7 mm |
| Type | Absorbing Sheet |
| Width | 304.8 mm |
| Width [x] | 12 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Sheet | 1 | $ 85.00 | |
| 4 | $ 75.00 | |||
| 8 | $ 70.00 | |||
Description
General part information
FB013 Series
RF EMI Absorbing Sheet - Lossy Foam Pressure Sensitive Adhesive (PSA) 12.000" (304.80mm) X 12.000" (304.80mm) X 0.500" (12.70mm)
Documents
Technical documentation and resources
No documents available
