QME48T20120-NGA0G

Active

EOS Power India Private Ltd

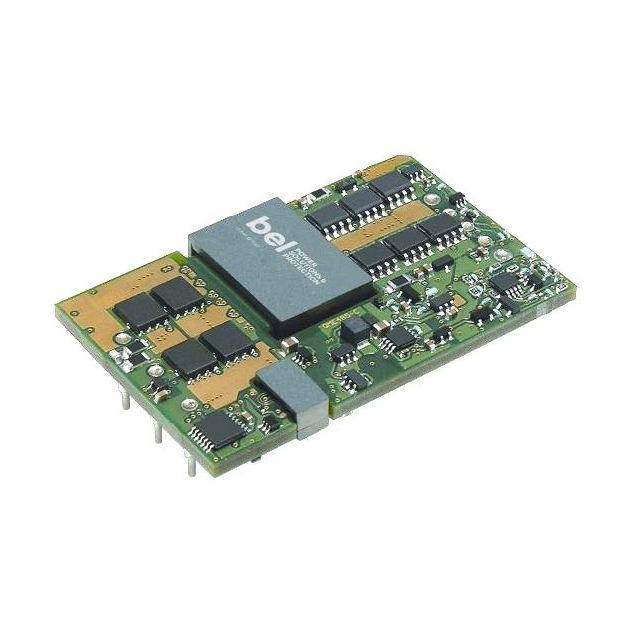

MODULE DC-DC 48VIN 1-OUT 12V 20A 8-PIN QUARTER-BRICK

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

MODULE DC-DC 48VIN 1-OUT 12V 20A 8-PIN QUARTER-BRICK

Technical Specifications

Parameters and characteristics for this part

Specification	QME48T20120-NGA0G

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	20 A
Efficiency	93 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	1/4 Brick, 8-DIP Module
Power (Watts)	240 W
Size / Dimension [x]	2.3 in
Size / Dimension [x]	58.4 mm
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	12.2 mm
Size / Dimension [z]	0.48 in
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2000 V
Voltage - Output 1	12 V

Part	Number of Outputs	Voltage - Isolation	Current - Output (Max) [Max]	Power (Watts)	Mounting Type	Control Features	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Voltage - Output 1	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Applications
EOS Power India Private Ltd QME48T20120-NGB0	1	2000 V	20 A	240 W	Through Hole	Active Low Enable	75 V	36 V	93 %	12 V	1/4 Brick 8-DIP Module	57.9 mm	0.48 in	1.45 in	2.28 in	36.8 mm	12.2 mm	Intermediate Bus Converter	OCP OTP OVP Remote On/Off UVLO	85 °C	-40 °C	ITE (Commercial)
EOS Power India Private Ltd QME48T20120-NGA0G	1	2000 V	20 A	240 W	Through Hole	Active Low Enable	75 V	36 V	93 %	12 V	1/4 Brick 8-DIP Module	58.4 mm	0.48 in	1.45 in	2.3 in	36.8 mm	12.2 mm	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 °C	ITE (Commercial)
EOS Power India Private Ltd QME48T20120-PGA0G	1	2000 V	20 A	240 W	Through Hole	Active High Enable	75 V	36 V	93 %	12 V	1/4 Brick 8-DIP Module	58.4 mm	0.48 in	1.45 in	2.3 in	36.8 mm	12.2 mm	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 °C	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	360	$ 76.57

General part information

Isolated Module DC DC Converter 1 Output 12V 20A 36V - 75V Input
