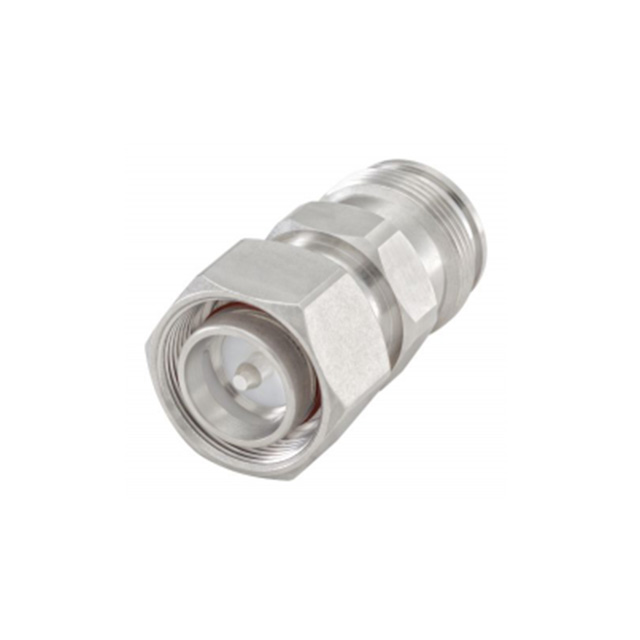

64S101-K00B1

Obsolete

Rosenberger

COAX ADAPT 4.3/10 TO 4.3/10

Search across all available documentation for this part.

Obsolete

Rosenberger

COAX ADAPT 4.3/10 TO 4.3/10

Technical Specifications

Parameters and characteristics for this part

Specification	64S101-K00B1

Adapter Series [Max]	4.3/10
Adapter Series [Min]	4.3/10
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Same Series
Convert From (Adapter End)	4.3/10 Plug, Male Pin
Convert To (Adapter End)	Female Socket, 4.3/10 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Mounting Type	Center Contact Plating	Center Gender	Frequency - Max [Max]	Dielectric Material	Body Material	Adapter Type	Convert From (Adapter End)	Style	Body Finish	Center Contact Material	Convert To (Adapter End)	Adapter Series [Max]	Adapter Series [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Conversion Type	Impedance
Rosenberger 64S101-S00N1	Free Hanging (In-Line)	Silver	Male to Male	12 GHz	Polytetrafluoroethylene (PTFE)	Brass	Plug to Plug	4.3/10 Plug Male Pin	Straight	White Bronze	Brass	4.3/10 Plug Male Pin	4.3/10	4.3/10	90 °C	-55 °C	Same Series	50 Ohms
Rosenberger 64S101-K00B1	Free Hanging (In-Line)	Silver		12 GHz	Polytetrafluoroethylene (PTFE)	Brass	Plug to Jack	4.3/10 Plug Male Pin	Straight	White Bronze	Beryllium Copper Brass	4.3/10 Jack Female Socket	4.3/10	4.3/10	90 °C	-55 °C	Same Series	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector 4.3/10 Plug, Male Pin To 4.3/10 Jack, Female Socket 50 Ohms
