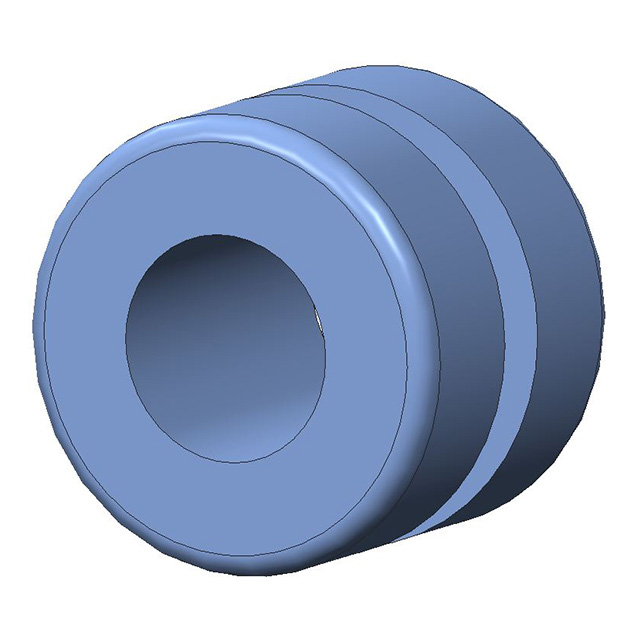

G-503-3

Active

Aearo Technologies LLC, a 3M company

SCREW GROMMET THERMOPLASTIC

Search across all available documentation for this part.

Active

Aearo Technologies LLC, a 3M company

SCREW GROMMET THERMOPLASTIC

Technical Specifications

Parameters and characteristics for this part

Specification	G-503-3

Head Diameter [diameter]	9.78 mm
Head Diameter [diameter]	0.385 in
Material	Thermoplastic
Mounting Hole Diameter [diameter]	0.244 in
Mounting Hole Diameter [diameter]	6.2 mm

Part	Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Head Diameter [diameter]	Head Diameter [diameter]	Color
Aearo Technologies LLC, a 3M company G-503-C8012	Thermoplastic	0.244 in	6.2 mm	9.78 mm	0.385 in	Black
Aearo Technologies LLC, a 3M company G-503-C6050	Thermoplastic	0.244 in	6.2 mm	9.78 mm	0.385 in	Black
Aearo Technologies LLC, a 3M company G-503-3	Thermoplastic	0.244 in	6.2 mm	9.78 mm	0.385 in
Aearo Technologies LLC, a 3M company G-503-C8002	Thermoplastic	0.244 in	6.2 mm	9.78 mm	0.385 in	Blue
Aearo Technologies LLC, a 3M company G-503-V2590	Thermoplastic	0.244 in	6.2 mm	9.78 mm	0.385 in	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 0.37

General part information

Screw Grommet Thermoplastic
