09200160321

Active

HARTING Technology Group

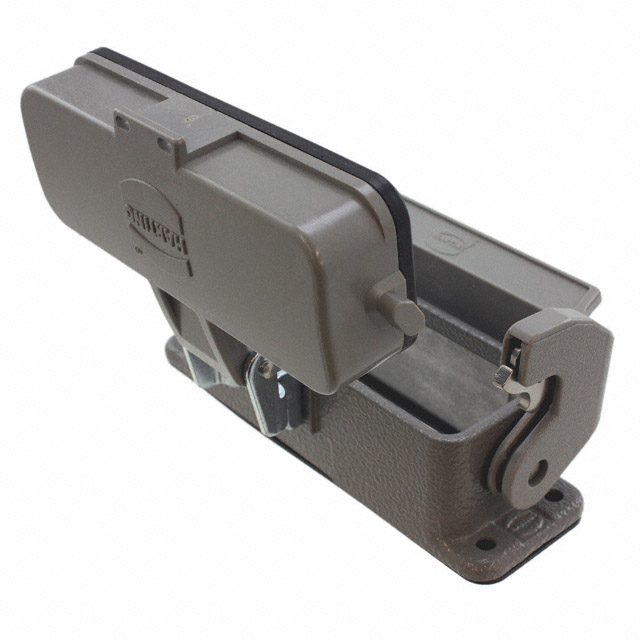

HEAVY DUTY CONNECTOR, PLASTIC COVER, LOW PROFILE, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER, 16A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09200160321

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PLASTIC COVER, LOW PROFILE, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER, 16A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09200160321

Connector Type	Base - Panel Mount
Features	Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 A
Size / Dimension [x]	3.78 "
Size / Dimension [x]	96 mm
Size / Dimension [y]	29 mm
Size / Dimension [y]	1.142 in
Size / Dimension [z]	1.024 in
Size / Dimension [z]	26 mm
Style	Bottom Entry

09200160 Series

Part	Housing Material	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Connector Type	Housing Finish	Style	Size	Housing Color	Features
HARTING Technology Group 09200160251	Aluminum Die Cast	Locking Clip (1) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	PG16	57 mm	1.969 in	2.244 "	95 mm	3.74 "	50 mm	Base - Box Mount	Powder Coated	Side Entry	16 A	Gray
HARTING Technology Group 09200160443		Locking Clip (1) on Base Bottom				PG16	2.764 in 70.2 mm			3.118 in 79.2 mm		1.417 in 36 mm	Hood		Top Entry	16 A
HARTING Technology Group 09200160221	Aluminum Die Cast	Locking Clip (1) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	PG16	57 mm	1.969 in	2.244 "	95 mm	3.74 "	50 mm	Base - Box Mount	Powder Coated	Side Entry	16 A	Gray	Cover
HARTING Technology Group 09200160321	Aluminum Die Cast	Locking Clip (1) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant		26 mm	1.142 in	1.024 in	96 mm	3.78 "	29 mm	Base - Panel Mount	Powder Coated	Bottom Entry	16 A	Gray	Cover
HARTING Technology Group 09200160222	Aluminum Die Cast	Locking Clip (1) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	PG21	57 mm	1.969 in	2.244 "	95 mm	3.74 "	50 mm	Base - Box Mount	Powder Coated	Side Entry	16 A	Gray	Cover
HARTING Technology Group 09200160301	Aluminum Die Cast	Locking Clip (1) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant		26 mm	1.142 in	1.024 in	96 mm	3.78 "	29 mm	Base - Panel Mount	Powder Coated	Bottom Entry	16 A	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.71
		10	$ 37.74
		25	$ 34.00
		50	$ 31.57
		100	$ 29.45
		250	$ 27.02

Description

General part information

09200160 Series

The 09200160321 is a Han A Bulkhead Mounted Housing with thermoplastic cover for 16A series connectors. Single locking lever panel base and low construction. Made of aluminum die cast, RAL 7037 (grey) locking element, polycarbonate + stainless steel locking lever, NBR seal.
