7029-3410

Active

Amphenol SV Microwave

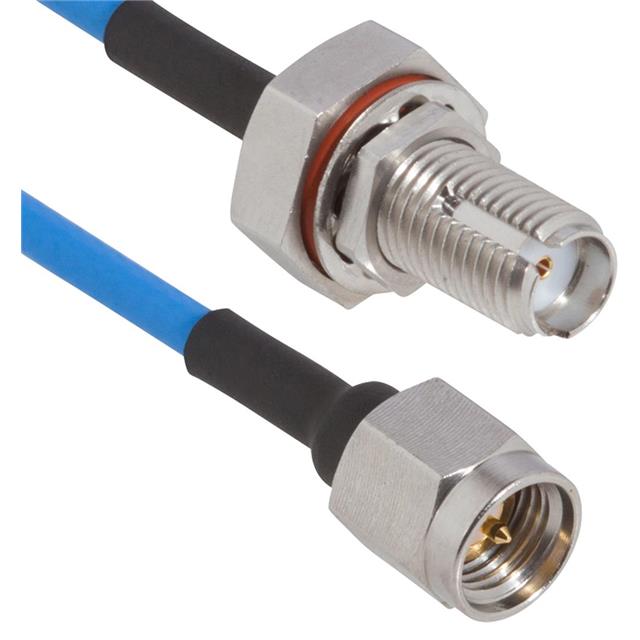

CBL ASSY SMA JACK TO PLUG 6"

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CBL ASSY SMA JACK TO PLUG 6"

Technical Specifications

Parameters and characteristics for this part

Specification	7029-3410

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	TFlex-405
Color	Blue
Features	Shielded
Frequency - Max [Max]	18 GHz
Length	152.4 mm
Length	6 in
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style	SMA to SMA

Part	Overall Impedance	Cable Type	Style	2nd Connector Mounting Type	2nd Contact Gender	Features	1st Contact Gender	Color	Length	Length	2nd Connector	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector Mounting Type	Frequency - Max [Max]	1st Connector	1st Connector Mounting Feature
Amphenol SV Microwave 7029-3437	50 Ohms	0.047" Flexible Cable	SMA to SMA	Free Hanging (In-Line)	Male	Shielded	Male	Blue	152.4 mm	6 in	SMA Plug	-65 ░C	165 °C	Free Hanging (In-Line)	26.5 GHz	SMA Plug
Amphenol SV Microwave 7029-3413	50 Ohms	TFlex-405	SMA to SMA	Free Hanging (In-Line)	Male	Shielded	Male	Blue	152.4 mm	6 in	SMA Plug	-65 ░C	165 °C	Free Hanging (In-Line)	18 GHz	SMA Plug
Amphenol SV Microwave 7029-3411	50 Ohms	TFlex-405	SMA to SMA	Free Hanging (In-Line)	Male	Shielded	Female	Blue	152.4 mm	6 in	SMA Plug	-65 ░C	165 °C	Panel Mount	18 GHz	SMA Jack	Bulkhead - Front Side Nut
Amphenol SV Microwave 7029-3410	50 Ohms	TFlex-405	SMA to SMA	Free Hanging (In-Line)	Male	Shielded	Female	Blue	152.4 mm	6 in	SMA Plug	-65 ░C	165 °C	Panel Mount	18 GHz	SMA Jack	Bulkhead - Front Side Nut
Amphenol SV Microwave 7029-3408	50 Ohms	TFlex-405	SMA to SMA	Free Hanging (In-Line)	Male	Shielded	Female	Blue	152.4 mm	6 in	SMA Plug	-65 ░C	165 °C	Panel Mount	18 GHz	SMA Jack	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 151.13

General part information

Cable Assembly Coaxial SMA to SMA TFlex-405 6.000" (152.40mm)
