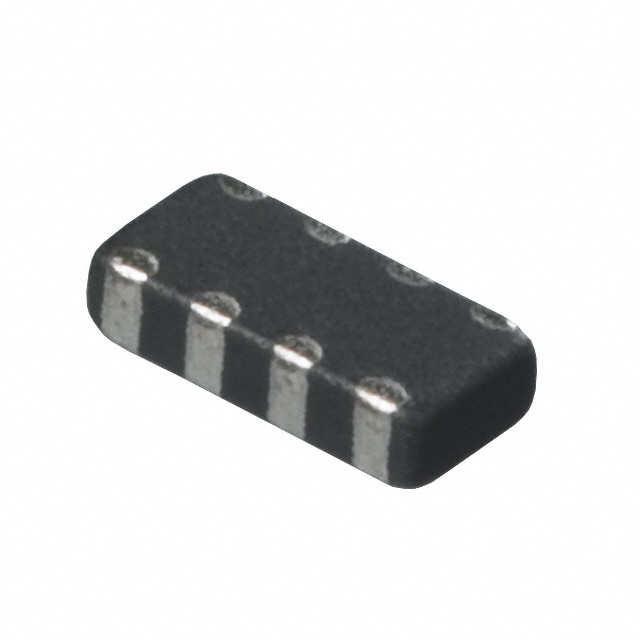

BLA2AAG601SN4D
ActiveMurata Power Solutions Inc.
FERRITE BEAD 600 OHM 0804 4LN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLA2AAG601SN4D
ActiveMurata Power Solutions Inc.
FERRITE BEAD 600 OHM 0804 4LN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BLA2AAG601SN4D |
|---|---|
| Current Rating (Max) [Max] | 50 mA |
| DC Resistance (DCR) (Max) [Max] | 1.1 Ohm |
| Height (Max) [Max] | 0.6 mm |
| Height (Max) [Max] | 0.024 in |
| Impedance @ Frequency | 600 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Array, 0804 (2010 Metric) |
| Package / Case | 8 Leads |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 1 mm |
| Size / Dimension [y] | 0.039 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.37 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.16 | |||
| 5000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.37 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.16 | |||
| 5000 | $ 0.15 | |||
| Tape & Reel (TR) | 10000 | $ 0.15 | ||
| 20000 | $ 0.14 | |||
Description
General part information
BLA2AAG Series
600 Ohms @ 100 MHz 4 Ferrite Bead 0804 (2010 Metric), Array, 8 PC Pad 50mA 1.1Ohm
