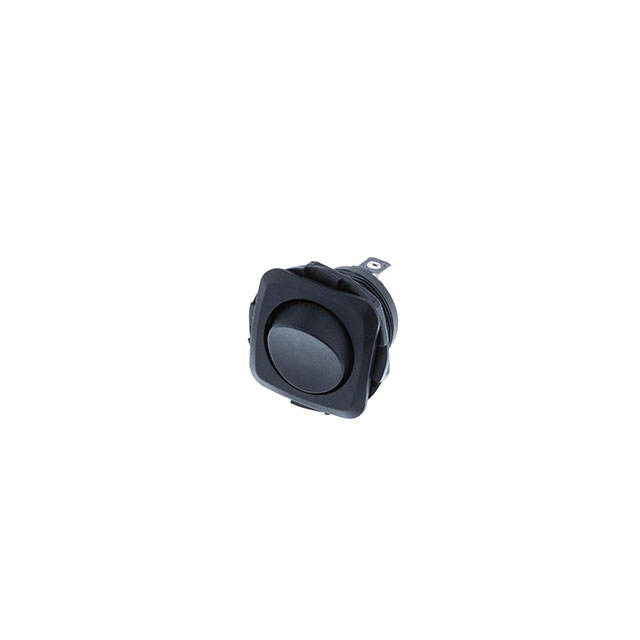

RB1-1B-DC-2-B
ActiveSwitch Components
SWITCH ROCKER SPST-NO 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RB1-1B-DC-2-B
ActiveSwitch Components
SWITCH ROCKER SPST-NO 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RB1-1B-DC-2-B |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A, 16 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Threaded Body with Nut |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 20.2 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.98 | |
| 10 | $ 2.83 | |||
| 25 | $ 2.77 | |||
| 50 | $ 2.70 | |||
| 100 | $ 2.55 | |||
| 250 | $ 2.35 | |||
| 500 | $ 1.78 | |||
| 1000 | $ 1.63 | |||
Description
General part information
RB1-1B Series
Rocker Switch SPST-NO 16 (AC), 20 (DC) 125 V Panel Mount, Threaded Body with Nut
