031-4237

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	031-4237

Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Eyelet
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms

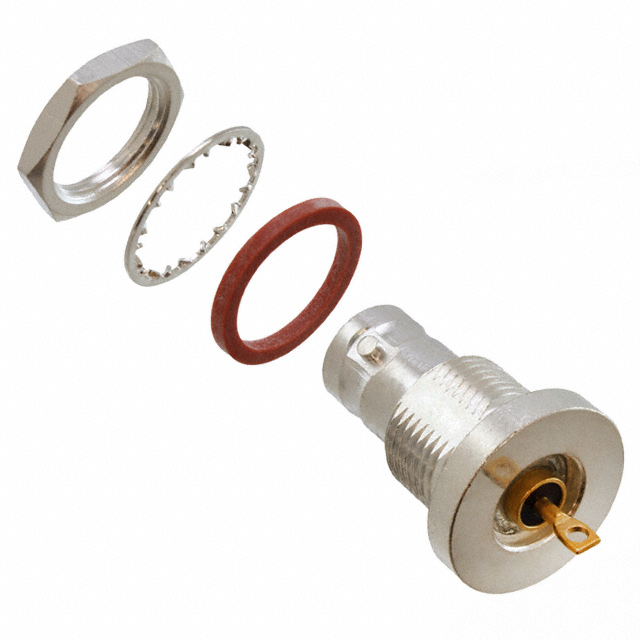

Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Mounting Feature	Includes	Connector Style	Body Material	Center Contact Plating	Mating Cycles	Dielectric Material	Fastening Type	Insertion Loss	Center Contact Material	Contact Termination	Housing Color	Body Finish	Number of Ports	Shield Termination	Connector Type	Voltage Rating
Amphenol RF 031-4237	50 Ohms	-65 ░C	165 °C	4 GHz	Bulkhead - Front Side Nut	1 Connector 1 Gasket 1 Lockwasher 1 Nut	BNC	Brass	Gold	500	Polytetrafluoroethylene (PTFE)	Bayonet Lock	0.2 dB	Beryllium Copper	Solder Eyelet	Silver	Silver	1	Solder	Female Socket Jack	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Eyelet
