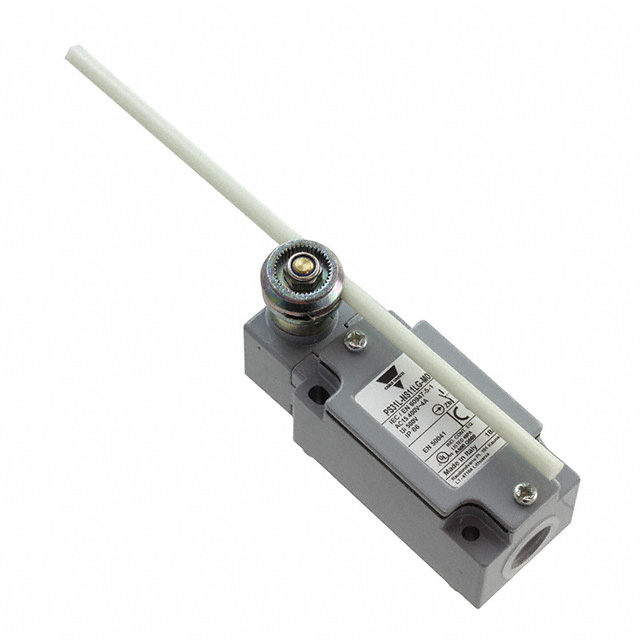

PS31L-NS11LG-M00
ActiveCARLO GAVAZZI
SWITCH SNAP ACT DPST 5.5A 130V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PS31L-NS11LG-M00
ActiveCARLO GAVAZZI
SWITCH SNAP ACT DPST 5.5A 130V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PS31L-NS11LG-M00 |
|---|---|
| Actuator Type | Side Rotary, Adjustable Rod |
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 2.8 A, 5.5 A |
| Ingress Protection | IP66 |
| Mounting Type | Chassis Mount |
| Operating Force | 15 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 130 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 71.40 | |
| 10 | $ 67.98 | |||
| 50 | $ 67.12 | |||
| 100 | $ 64.98 | |||
Description
General part information
PS31L Series
Switch DPST-NO/NC Chassis Mount
