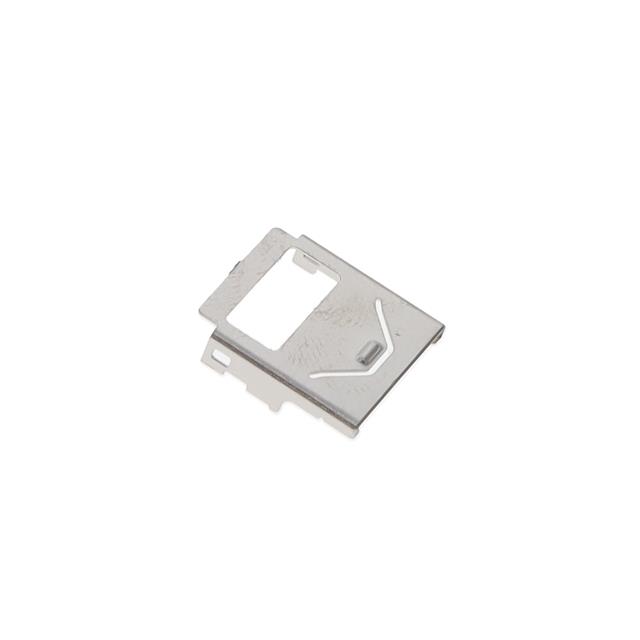

LX40-16P(02)

Active

Hirose Electric USA, Inc.

2.0 MM MOUNTING HEIGHT, ULTRA LOW-PROFILE INTERFACE CONNECTORS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

2.0 MM MOUNTING HEIGHT, ULTRA LOW-PROFILE INTERFACE CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Color	Cable Termination	Wire Type	Pitch [x]	Pitch [x]	Contact Type	Contact Finish	Number of Rows	Connector Type	Mounting Type	Number of Positions	Accessory Type	For Use With/Related Products
Hirose Electric USA, Inc. LX40-12P(02)	12	Black	Solder	Discrete	0.5 mm	0.02 in	Male Pin	Gold	1	Plug	Free Hanging (In-Line)
Hirose Electric USA, Inc. LX40-16P(02)		Black	Solder	Discrete	0.5 mm	0.02 in	Male Pin	Gold	1	Plug	Free Hanging (In-Line)	16
Hirose Electric USA, Inc. LX40-12P	12	Black	Solder	Discrete	0.5 mm	0.02 in	Male Pin	Gold	1	Plug	Free Hanging (In-Line)
Hirose Electric USA, Inc. LX40-16BS(4.5)												16	Bushing	LX Series
Hirose Electric USA, Inc. LX40-20BS(5.0)	20												Bushing	LX Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Rectangular Plug Connector Solder Gold
