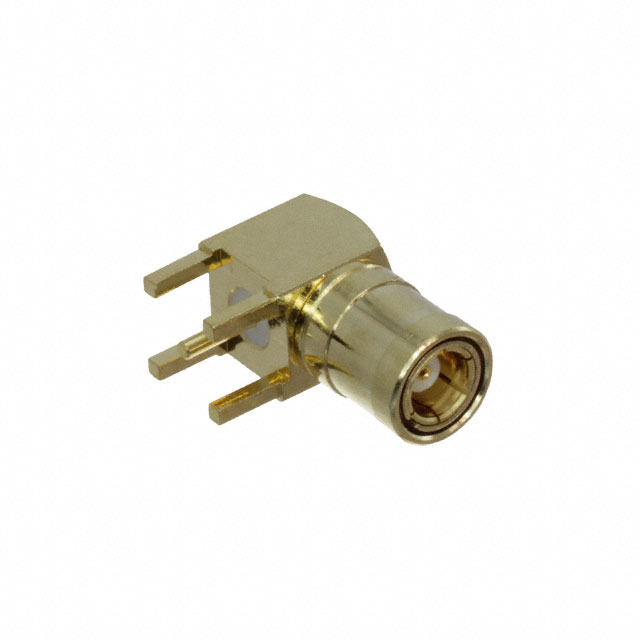

RF3-04A-T-00-50-G - RF3-04A-T-00-50-G

RF3-04A-T-00-50-G

Active
Adam Tech

SMB PLUG RA PCB 50OHM 4GHZ BRS B

Deep-Dive with AI

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Technical Specifications

Parameters and characteristics for this part

SpecificationRF3-04A-T-00-50-G
Body FinishGold
Body MaterialBrass
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleSMB
Connector TypePlug, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
FeaturesCode A
Frequency - Max [Max]4 GHz
Housing ColorWhite
Impedance50 Ohms
Mounting TypeThrough Hole, Right Angle
Number of Ports1
Operating Temperature [Max]165 °C
Operating Temperature [Min]-65 ░C
Shield TerminationSolder
Voltage Rating335 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.43
10$ 3.38
25$ 3.05
50$ 2.82
100$ 2.62
250$ 2.37
500$ 2.21
1000$ 2.06
2500$ 1.89

Description

General part information

RF3-04 Series

SMB Connector Plug, Female Socket 50 Ohms Through Hole, Right Angle Solder
