CONN012-R58

Obsolete

TE Connectivity Linx

CONN N PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Obsolete

TE Connectivity Linx

CONN N PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	CONN012-R58

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

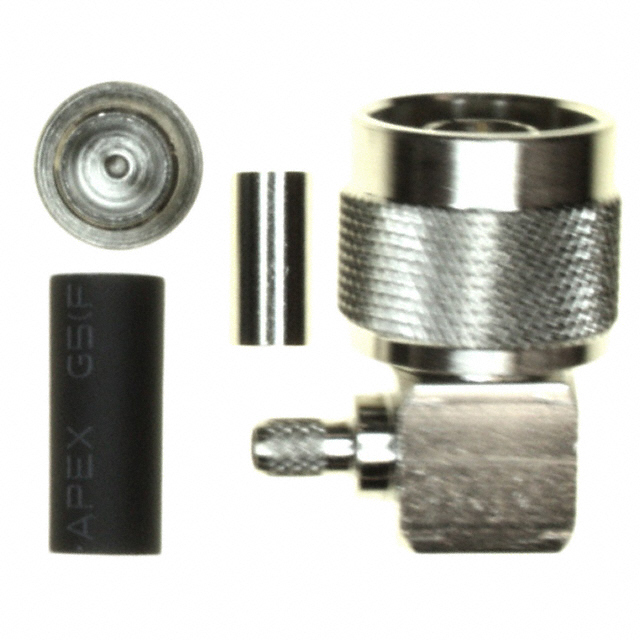

Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Shield Termination	Center Contact Material	Body Finish	Insertion Loss	Body Material	Housing Color	Center Contact Plating	Dielectric Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Voltage Rating	Number of Ports	Contact Termination	Connector Style	Mounting Type	Cable Group	Frequency - Max [Max]	Mating Cycles	Includes
TE Connectivity Linx CONN012-R58	Crimp	Brass	Nickel	0.3 dB	Brass	Silver	Gold	Polytetrafluoroethylene (PTFE)	Male Pin Plug	-65 ░C	165 °C	50 Ohms	500 V	1	Solder	N Type	Free Hanging (In-Line) Right Angle	RG-58	11 GHz	500	1 Connector 1 End Cap 1 Ferrule

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

No documents available
