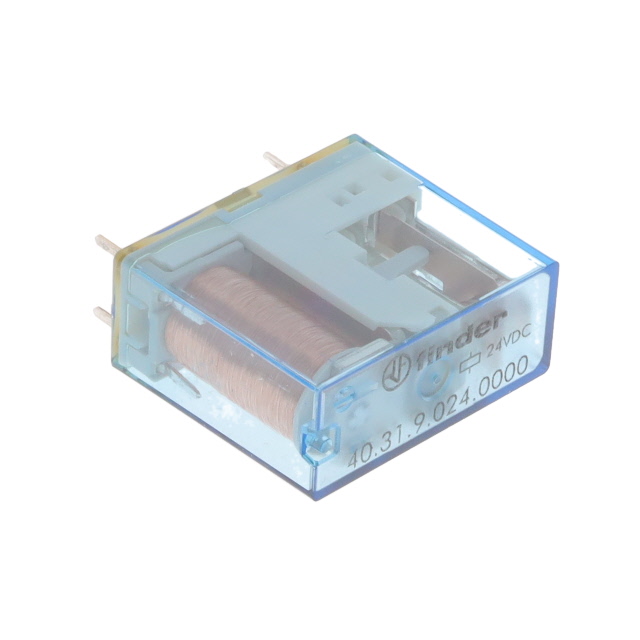

40.31.9.024.0000
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE SPDT 10A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
40.31.9.024.0000
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE SPDT 10A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 40.31.9.024.0000 |
|---|---|
| Approval Agency | EAC, CCC, RINA, CSA, cURus, VDE, ENEC |
| Coil Current | 27 mA |
| Coil Resistance | 900 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 4000 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 17.5 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 3 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.41 | |
| 10 | $ 5.07 | |||
| 25 | $ 4.50 | |||
| 50 | $ 4.28 | |||
| 100 | $ 4.05 | |||
| 250 | $ 3.60 | |||
| 500 | $ 3.38 | |||
| 1000 | $ 3.15 | |||
Description
General part information
40.31.9 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
