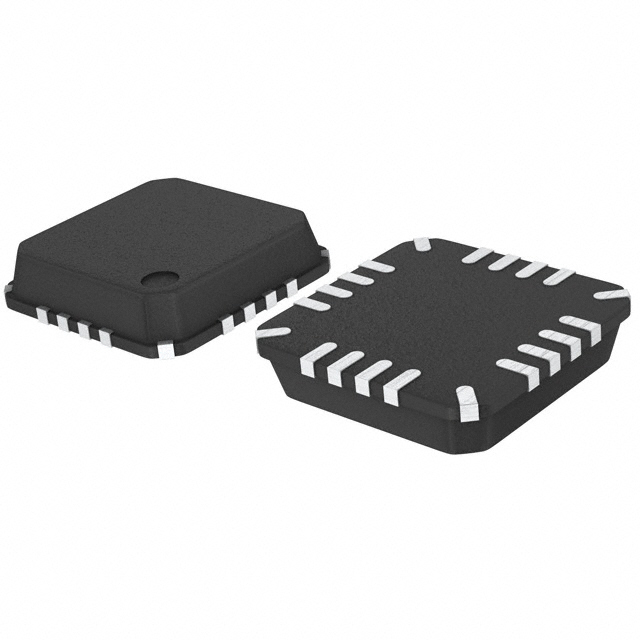

BA2901KN-E2

Obsolete

Rohm Semiconductor

IC COMPARATOR 4 GEN PUR 16VQFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BA2901KN-E2

Obsolete

Rohm Semiconductor

IC COMPARATOR 4 GEN PUR 16VQFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BA2901KN-E2

Current - Input Bias (Max) [Max]	0.25 µA
Current - Output (Typ)	16 mA
Current - Quiescent (Max) [Max]	2 mA
Mounting Type	Surface Mount
Number of Elements	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	Open-Collector
Package / Case	16-VFQFN
Supplier Device Package	16-VQFN (4x4)
Type	General Purpose
Voltage - Input Offset (Max) [Max]	7 mV
Voltage - Supply, Single/Dual (±) [Max]	36 V, 18 V
Voltage - Supply, Single/Dual (±) [Min]	2 V, 1 V

BA2901 Series

Part	Current - Quiescent (Max) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Mounting Type	Voltage - Input Offset (Max) [Max]	Current - Output (Typ)	Output Type	Number of Elements	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Supplier Device Package	Current - Input Bias (Max) [Max]	Package / Case	Package / Case [custom]	Package / Case [custom]	Grade	Qualification
Rohm Semiconductor BA2901KN-E2	2 mA	1 V 2 V	18 V 36 V	Surface Mount	7 mV	16 mA	Open-Collector	4	125 °C	-40 °C	General Purpose	16-VFQFN	16-VQFN (4x4)	0.25 µA
Rohm Semiconductor BA2901FV-E2	2 mA	1 V 2 V	18 V 36 V	Surface Mount	7 mV	16 mA	Open-Collector	4	125 °C	-40 °C	General Purpose	14-LSSOP	14-SSOP-B	0.25 µA	0.173 " 4.4 mm
Rohm Semiconductor BA2901YF-CE2	2 mA	1 V 2 V	18 V 36 V	Surface Mount	4 mV	16 mA	Open-Collector	4	125 °C	-40 °C	General Purpose	14-SOIC	14-SOP	0.25 µA		4.4 mm	0.173 "	Automotive	AEC-Q100
Rohm Semiconductor BA2901YFV-CE2	2 mA	1 V 2 V	18 V 36 V	Surface Mount	4 mV	16 mA	Open-Collector	4	125 °C	-40 °C	General Purpose	14-LSSOP	14-SSOP-B	0.25 µA	0.173 " 4.4 mm			Automotive	AEC-Q100
Rohm Semiconductor BA2901SF-E2	2 mA	1 V 2 V	18 V 36 V	Surface Mount	7 mV	16 mA	Open-Collector	4	105 ░C	-40 °C	General Purpose	14-SOIC	14-SOP	0.25 µA		4.4 mm	0.173 "
Rohm Semiconductor BA2901YFV-MGE2	2 mA	1 V 2 V	18 V 36 V	Surface Mount	7 mV	16 mA	Open-Collector	4	125 °C	-40 °C	General Purpose	14-TSSOP	14-SSOPB	0.25 µA		4.4 mm	0.173 "	Automotive	AEC-Q100
Rohm Semiconductor BA2901SKN-E2	2 mA	1 V 2 V	18 V 36 V	Surface Mount	7 mV	16 mA	Open-Collector	4	105 ░C	-40 °C	General Purpose	16-VFQFN	16-VQFN (4x4)	0.25 µA
Rohm Semiconductor BA2901SFV-E2	2 mA	1 V 2 V	18 V 36 V	Surface Mount	7 mV	16 mA	Open-Collector	4	105 ░C	-40 °C	General Purpose	14-LSSOP	14-SSOP-B	0.25 µA	0.173 " 4.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BA2901 Series

Comparator General Purpose Open-Collector 16-VQFN (4x4)
