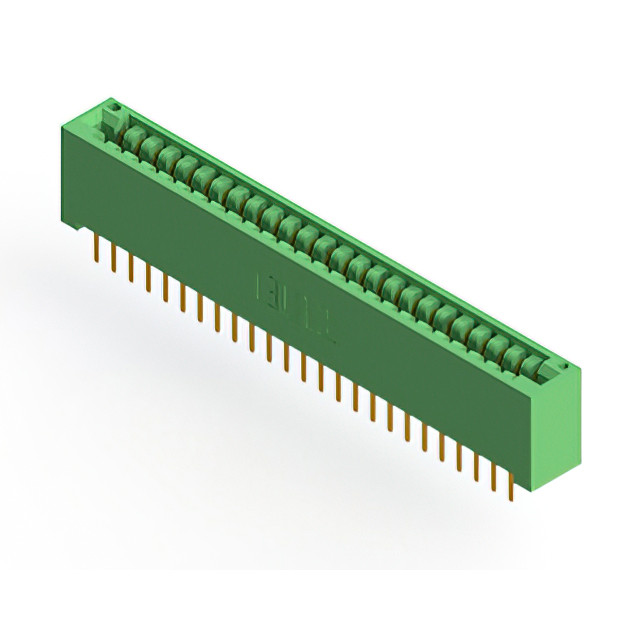

846-050-520-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-050-520-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-050-520-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-050 Series
...
| Part | Flange Feature | Flange Feature | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Gender | Mounting Type | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination Rows | Contact Finish | Read Out | Card Type | Contact Material | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Color | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 3.25 mm | 0.128 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | 2 | Gold | Dual | Non Specified - Dual Edge | Copper Alloy | Solder | 125 °C | -40 °C | 50 | Green | 25 | ||||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | 1 | Gold | Single | Non Specified - Single Edge | Copper Alloy | Wire Wrap | 125 °C | -40 °C | 50 | Green | 50 | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | 2 | Gold | Dual | Non Specified - Dual Edge | Copper Alloy | Solder | 125 °C | -40 °C | 50 | Green | 25 | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | 1 | Gold | Single | Non Specified - Single Edge | Copper Alloy | Solder Eyelet(s) | 125 °C | -40 °C | 50 | Green | 50 | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | 1 | Gold | Single | Non Specified - Single Edge | Copper Alloy | Solder | 125 °C | -40 °C | 50 | Green | 50 | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | 2 | Gold | Dual | Non Specified - Dual Edge | Copper Alloy | Solder Eyelet(s) | 125 °C | -40 °C | 50 | Green | 25 | M3 Threaded Insert Top Mount Opening | Card Extender | ||||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | 2 | Gold | Dual | Non Specified - Dual Edge | Copper Alloy | Wire Wrap | 125 °C | -40 °C | 50 | Green | 25 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | 2 | Gold | Dual | Non Specified - Dual Edge | Copper Alloy | Solder | 125 °C | -40 °C | 50 | Green | 25 | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender | ||||
EDAC Inc. | 3.25 mm | 0.128 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | 2 | Gold | Dual | Non Specified - Dual Edge | Copper Alloy | Solder | 125 °C | -40 °C | 50 | Green | 25 | Side Mount Opening Unthreaded | Card Extender | ||
EDAC Inc. | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | Through Hole | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | 2 | Gold | Dual | Non Specified - Dual Edge | Copper Alloy | Solder | 125 °C | -40 °C | 50 | Green | 25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-050 Series
50 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
