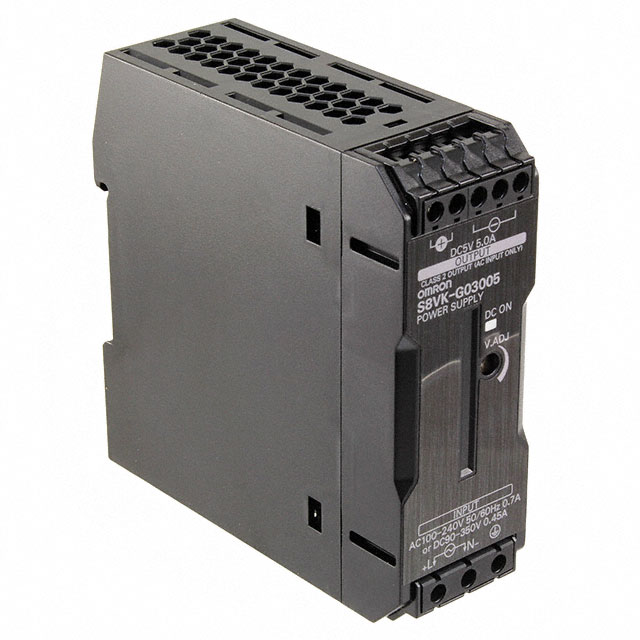

S8VK-G03005

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 30 W, 5 VDC, 5 A

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 30 W, 5 VDC, 5 A

Technical Specifications

Parameters and characteristics for this part

Specification	S8VK-G03005

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cULus, VDE, CE, cURus
Current - Output (Max) [Max]	5 A
Efficiency	79 %
Features	Universal Input, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Power (Watts)	30 W
Size / Dimension [x]	3.54 in
Size / Dimension [x]	90 mm
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.54 "
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Number of Outputs	Current - Output (Max) [Max]	Efficiency	Features	Input Type	Approval Agency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Power (Watts)
Omron Electronics Inc-EMC Div S8VK-G03005	1	5 A	79 %	Adjustable Output Load Sharing Universal Input	AC	CE cULus cURus VDE	85 VAC	264 VAC	-40 °C	75 ¯C	3000 V	ITE (Commercial)	90 mm	3.54 in	32 mm	1.26 in	3.54 "	90 mm	5 V	30 W
Omron Electronics Inc-EMC Div S8VK-G03005-400	1	5 A	79 %	Adjustable Output PFC Universal Input	AC	CE cULus cURus TUV	85 VAC	264 VAC			3000 V	ITE (Commercial)	90 mm	3.54 in	32 mm	1.26 in	3.54 "	90 mm	5 V	30 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 30 W, 5 VDC, 5 A
