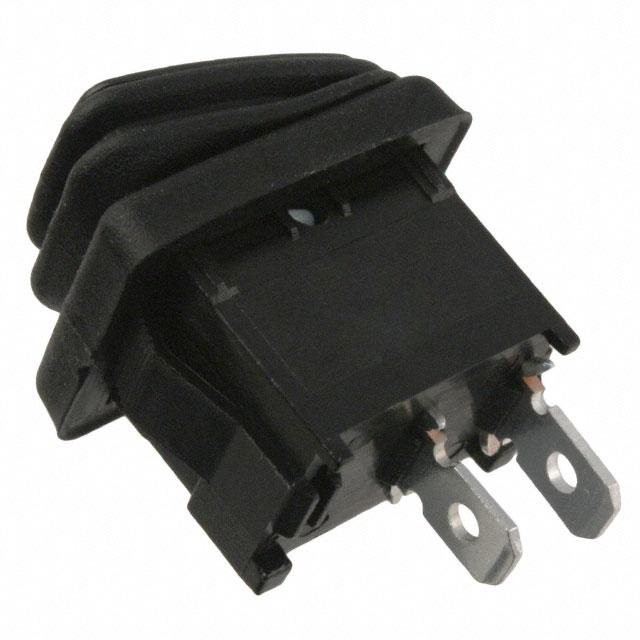

GRB066A802BB1

Active

CW Industries

SWITCH ROCKER SPST 16A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER SPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB066A802BB1

Actuator Marking	No Marking
Actuator Type	Flat
Approval Agency	ENEC, cULus
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A, 20 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	12 V

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mechanical Life	Current Rating (Amps)	Switch Function	Mounting Type	Actuator Marking	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Termination Style	Color - Actuator/Cap	Voltage Rating - AC	Voltage Rating - DC	Ingress Protection	Approval Agency
CW Industries GRB066A02BB2	13 mm	19.2 mm	100000 Cycles	16 A	On-Off	Panel Mount Snap-In	O -	Concave (Curved)	-25 °C	85 °C	SPST	Quick Connect - 0.187" (4.7mm)	Black	125 V
CW Industries GRB066A802BB1			100000 Cycles	16 A 20 A	On-Off	Panel Mount Snap-In	No Marking	Flat	-25 °C	85 °C	SPST	Quick Connect - 0.187" (4.7mm)	Black	125 V	12 V	IP65 - Dust Tight Water Resistant	cULus ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 16A (AC), 20A (DC) 125 V Panel Mount, Snap-In
