LTC9102AUKJ#PBF
ActivePSE CONTROLLER, POE, 12 CHANNEL, 3.3 V INPUT, 1 MHZ, 8.2 V UVLO, -40 °C TO 85 °C, QFN-EP-64
Deep-Dive with AI
Search across all available documentation for this part.
LTC9102AUKJ#PBF
ActivePSE CONTROLLER, POE, 12 CHANNEL, 3.3 V INPUT, 1 MHZ, 8.2 V UVLO, -40 °C TO 85 °C, QFN-EP-64
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTC9102AUKJ#PBF |
|---|---|
| Auxiliary Sense | False |
| Current - Supply | 11 mA |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Channels | 48 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

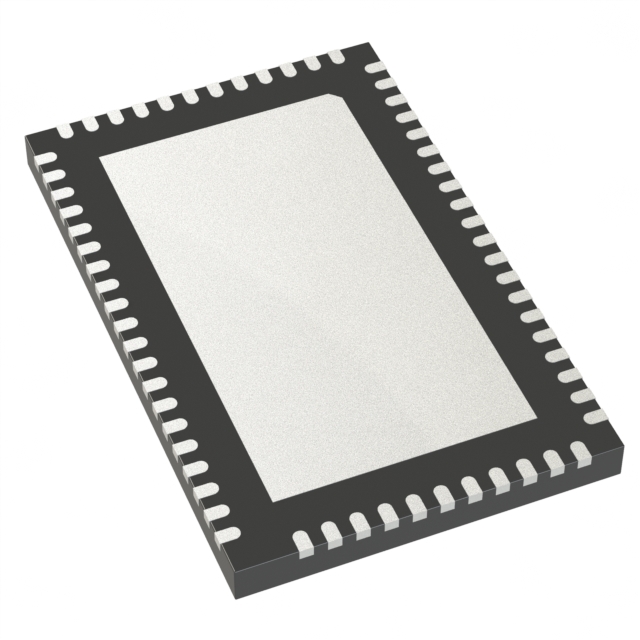

| Package / Case | 64-WFQFN Exposed Pad |
| Power - Max [Max] | 71.3 W |
| Standards | 802.3bt, 802.3at (PoE+), 802.3af (PoE) |
| Supplier Device Package | 64-QFN |
| Supplier Device Package [x] | 7 |
| Supplier Device Package [y] | 11 |
| Type | Controller (PSE) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LTC9102 Series
The LTC®9101-2/LTC9102 chipset is a 12/24-port power sourcing equipment (PSE) controller designed for use in IEEE 802.3bt Type 3 and 4 compliant Power over Ethernet (PoE) systems. The LTC9101-2/LTC9102 is designed to power compliant 802.3af, 802.3at, and 802.3bt PDs. The LTC9101-2/LTC9102 chipset delivers lowest-in-industry heat dissipation by utilizing low RDS(ON)external MOSFETs and 0.1Ω sense resistance per power channel. A transformer-isolated communication protocol replaces expensive opto-couplers and a complex isolated 3.3V supply, resulting in significant BOM cost savings.Advanced power management features include per-port 14‑bit current/power monitoring, programmable current/power limits, and versatile fast shut-down of preselected ports. An advanced power management host software layer is available. PD detection uses a proprietary multipoint detection mechanism ensuring excellent immunity from false PD identification. Autoclass and 5-event physical classification are supported. The LTC9101-1/LTC9102 includes an I2C serial interface operable up to 1MHz. The LTC9101-1/LTC9102 is pin or I2C programmable to negotiate PD delivered power up to 71.3W.APPLICATIONSPoE PSE Switches/Routers and Midspans
