C1PXS-3436G
ActiveCW Industries
IDC CABLE - CPC34S/AE34G/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
C1PXS-3436G
ActiveCW Industries
IDC CABLE - CPC34S/AE34G/X
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C1PXS-3436G |
|---|---|
| Cable Termination | IDC |
| Connector Type | PCB to Cable |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 34 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.05 in |
| Pitch - Connector | 1.27 mm |
| Shielding | Unshielded |
| Usage | Board In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.27 | |
| 10 | $ 8.66 | |||
| 25 | $ 7.82 | |||
| 50 | $ 7.25 | |||
| 100 | $ 6.74 | |||
| 250 | $ 6.14 | |||
| 500 | $ 5.73 | |||
| 1000 | $ 5.36 | |||
Description
General part information
C1PXS-3 Series

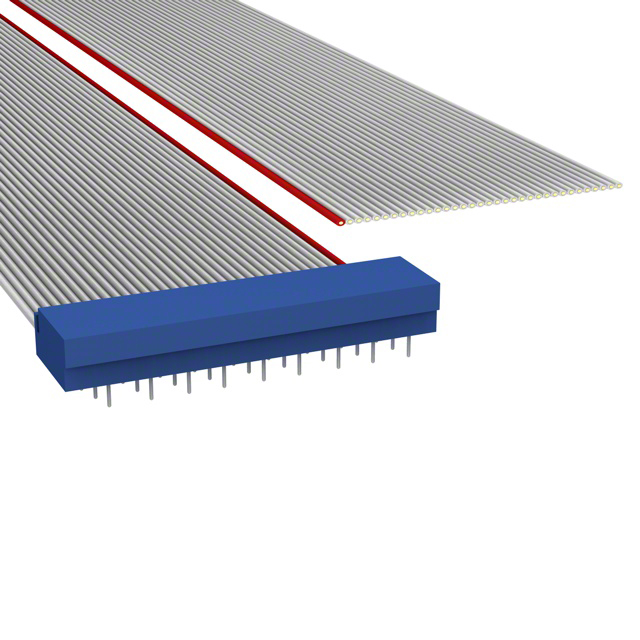

34 Position Cable Assembly Rectangular PCB to Cable 3.00' (914.40mm)
