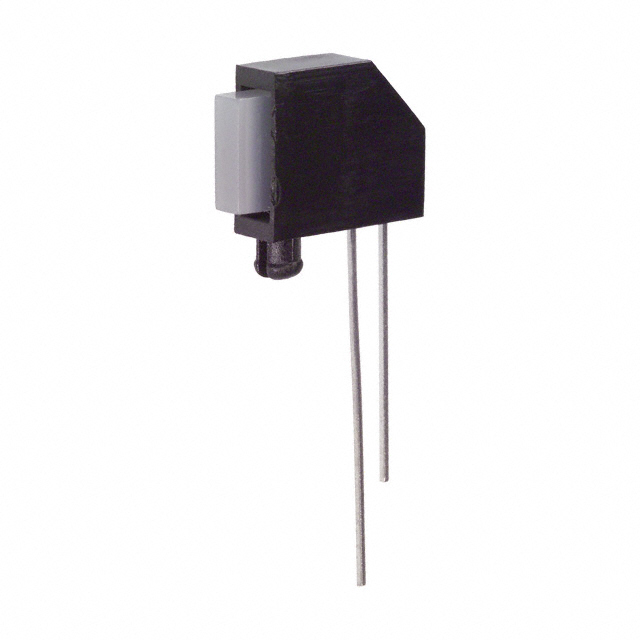

SSF-LXH25780HGW

Active

Lumex Opto/Components Inc.

LED LGT BAR 7X2.5MM RA GRN DIFF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSF-LXH25780HGW

Active

Lumex Opto/Components Inc.

LED LGT BAR 7X2.5MM RA GRN DIFF

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSF-LXH25780HGW

Color	Red, Green
Configuration	Bar - Single, SIP
Lens Size [x]	7 mm
Lens Size [y]	2.5 mm
Lens Style	Rectangle with Flat Top
Lens Type	Diffused, White
Mounting Type	Through Hole, Right Angle
Viewing Angle	110 °
Voltage Rating	2.2 V, 2 V

SSF-LXH25780 Series

Part	Mounting Type	Color	Lens Style	Lens Size [y]	Lens Size [x]	Voltage Rating	Viewing Angle	Millicandela Rating	Configuration	Lens Type	Wavelength - Peak	Current
Lumex Opto/Components Inc. SSF-LXH25780SRD	Through Hole Right Angle	Red	Rectangle with Flat Top	2.5 mm	7 mm	1.7 V	110 °	50 mcd	Bar - Single SIP	Diffused Tinted	660 nm
Lumex Opto/Components Inc. SSF-LXH25780HGW	Through Hole Right Angle	Green Red	Rectangle with Flat Top	2.5 mm	7 mm	2 V 2.2 V	110 °		Bar - Single SIP	Diffused White
Lumex Opto/Components Inc. SSF-LXH25780IGW	Through Hole Right Angle	Green Red	Rectangle with Flat Top	2.5 mm	7 mm	2 V 2.2 V	110 °		Bar - Single SIP	Diffused White	565 nm 635 nm	25 mA 30 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.86
		10	$ 1.24
		100	$ 0.96
		500	$ 0.86
		1000	$ 0.74
		2000	$ 0.70
		5000	$ 0.69
		10000	$ 0.68

Description

General part information

SSF-LXH25780 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green, Red Diffused, White 2.2V Green, 2V Red 20mA Rectangle with Flat Top 7.00mm x 2.50mm Through Hole, Right Angle
